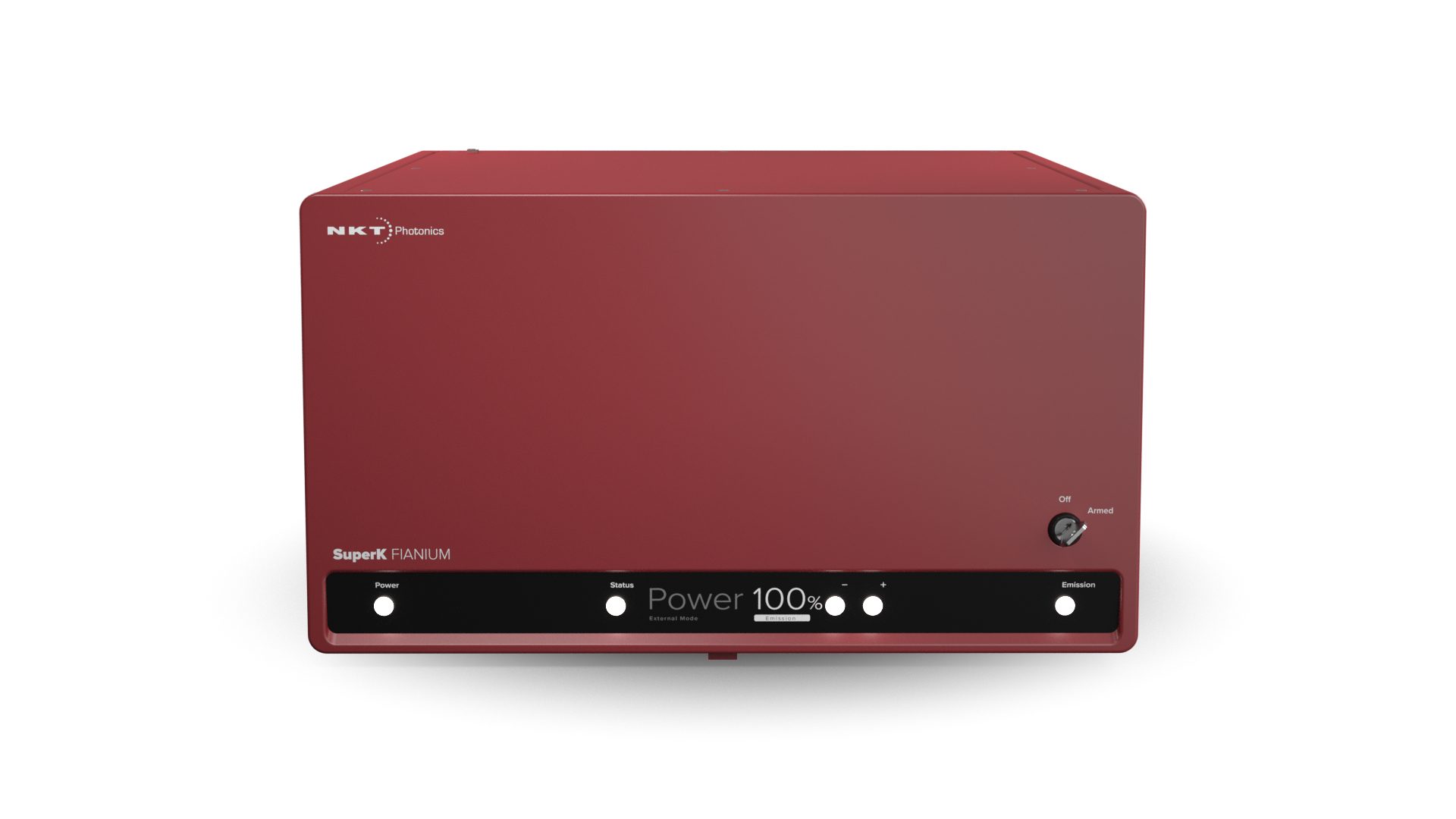

SuperK FIANIUM

SuperK FIANIUM – our flagship supercontinuum white light laser

The SuperK FIANIUM supercontinuum white light lasers are broad as a lamp and bright as a laser. They deliver high brightness diffraction-limited light in the entire 390-2400 nm region. By adding one of our filters, the SuperK can be converted into an ultra-tunable laser. Our supercontinuum lasers are maintenance-free and the monolithic fiber architecture ensures excellent reliability and a lifetime of thousands of hours.

Key Features

390-2400 nm single-mode output

Robust and maintenance-free

Flexible trigger out and power locking

On-the-fly variable repetition rate

Software Development Kit (SDK)

Plug & Play filter accessories

Models and options

FIU-6
FIU-6
Total power 2.2 W
VIS power 0.6 W
Options
Custom MHz repetition rate, Power Lock – external power locking, Warranty extensions
FIU-15
FIU-15
Total power 5.5 W
VIS power 1.5 W
Options
Custom MHz repetition rate, Power Lock – external power locking, Warranty extensions
FIR-20
FIR-20
Total power 6.5 W
VIS power 2.0 W
Options
Custom MHz repetition rate, Power Lock – external power locking, Warranty extensions

Also available – SuperK FIANIUM OCT

The SuperK FIANIUM OCT series are broadband, low-noise sources designed for optical coherence tomography. Pair it with a broadband spectrometer to get the same performance as Ti:Sapphire-based OCT systems at much lower cost, smaller footprint, great mobility, and robustness.

The OCT series share the same maintenance-free, reliable, and robust platform as our SuperK FIANIUM series and runs 24/7. And they work by the flip of a switch.

Want to know more?

Get in touch with one of our supercontinuum experts

The SuperK is a great source for characterization… It is very broad-band and suitable for characterization both in the visible and near-infrared ranges, high power, very stable, flexible and easy to use.

Alexandra Boltasseva Professor Birck Nanotechnology Center, Purdue University

A maintenance-free lifetime of thousands of hours

The SuperK series is based on NKT Photonics’ world-renowned Crystal Fibre technology that has reliably delivered supercontinuum to both commercial and academic users for over 15 years.

Our lasers are fully fiber monolithic which ensures excellent reliability and a lifetime of thousands of hours – as well as maintenance-free and alignment-free operation. For scientific applications, we offer a 2-year warranty.

Trusted quality

NKT Photonics is the largest manufacturer of PCF technology and reliability, quality, and performance are ensured through DIN ISO 9000 certified processes. Continuous testing of multiple systems during and after the development phase has ensured the longest continuous running lifetime in the market.

The SuperK FIANIUM is a cost-effective and user-friendly alternative to Ti:Sapphire solutions.

Specifications

Choose model:
FIU-6
FIU-15
FIR-20
Repetition rate
78 MHz
78 MHz
78 MHz
Variable repetition rate (optional)
0.15-78 MHz
0.15-78 MHz
0.15-78 MHz
Total visible power (350-850 nm)
≈ 0.6 W
≈ 1.5 W
≈ 2.0 W
Total power
≈ 2.2 W
≈ 5.5 W
≈ 6.5 W
Power stability
±0.5 %
±0.5 %
±0.5 %
Cut-in wavelength (>0.1 mW/nm)
390 nm
410 nm
475 nm
Polarization
Random
Random
Random
Beam quality
M2 < 1.1
M2 < 1.1
M2 < 1.1
Beam diameter @ 532 nm
≈ 1 mm
≈ 1 mm
≈ 1 mm
Beam diameter @ 1100 nm
≈ 2 mm
≈ 2 mm
≈ 2 mm
Beam diameter @ 2000 nm
≈ 3 mm
≈ 3 mm
≈ 3 mm
Beam pointing accuracy
< 1 mrad
< 1 mrad
< 1 mrad
FIU-6
FIU-15
FIR-20
System cooling
Air-cooled
Air-cooled
Air-cooled
Operation temperature
+18o to +30oC
+18o to +30oC
+18o to +30oC
Storage temperature
-10o to +55oC
-10o to +55oC
-10o to +55oC
Dimensions (WxHxL)
440 x 251 x 400 mm
440 x 251 x 400 mm
440 x 251 x 400 mm
Weight
18 kg (19 with pulse picker)
18 kg (19 with pulse picker)
18 kg (19 with pulse picker)
FIU-6
FIU-15
FIR-20
Computer interface
USB 2.0/RS-232/Ethernet
USB 2.0/RS-232/Ethernet
USB 2.0/RS-232/Ethernet
Operation voltage
100-240 VAC 50/60 Hz
100-240 VAC 50/60 Hz
100-240 VAC 50/60 Hz
Power consumption
<100 W (<120W with pulse picker)
<100 W (<120W with pulse picker)
<100 W (<120W with pulse picker)
Door interlock connector
2-pin LEMO
2-pin LEMO
2-pin LEMO
External bus interface
15-pin sub-D
15-pin sub-D
15-pin sub-D
