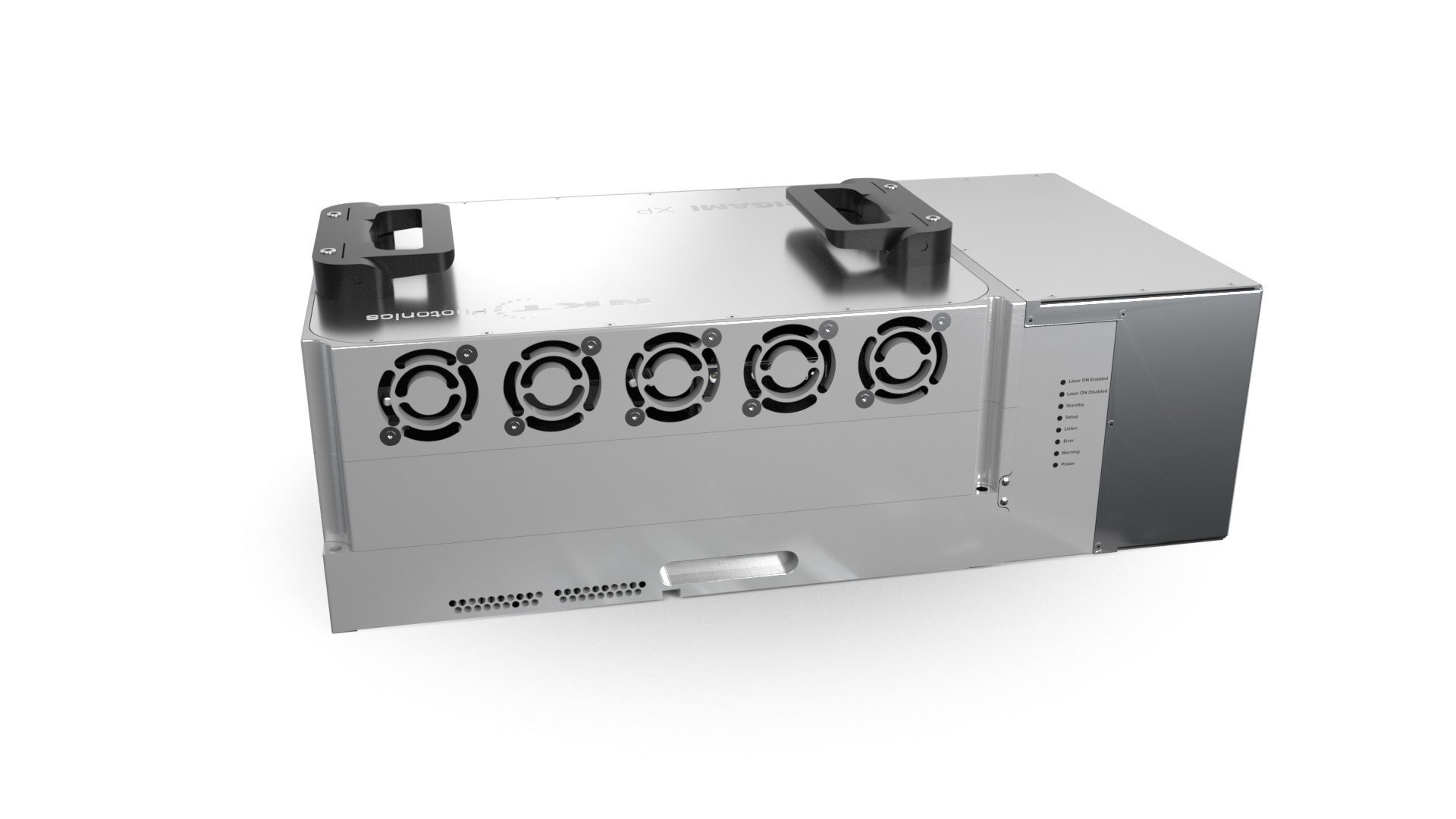

ORIGAMI XP – high energy femtosecond lasers

The ORIGAMI XP is the first all-in-one, single-box, microjoule femtosecond laser on the market. Get clean, ultrashort pulse duration, superior beam quality, and unprecedented beam pointing.

It sets new standards for all-in-one femtosecond lasers in medical device manufacturing and ultra-high precision micromachining applications. We have designed the ORIGAMI XP for easy and cost-effective integration.

Models and options

ORIGAMI 10 XP

Average power >4 W

Pulse energy <40 µJ

ORIGAMI 10 XPS

Average power >5 W

Pulse energy <70 µJ

ORIGAMI 10 XPS with tunable pulse

Average power >5 W

Pulse energy <70 µJ

Want to know more?

Get in touch with one of our ultrafast experts

Call us Message us

Selected application areas

Precision polymer cutting with femtosecond UV laser

Micromachining of thermally sensitive PET film

Sub-surface marking of glass

Cases from other ORIGAMI users

Cases

Hands-free characterization of ultra-thin materials

A new, advanced optical technology makes it possible to characterize ultra-thin materials without touching them. The …

Cost-effective and versatile

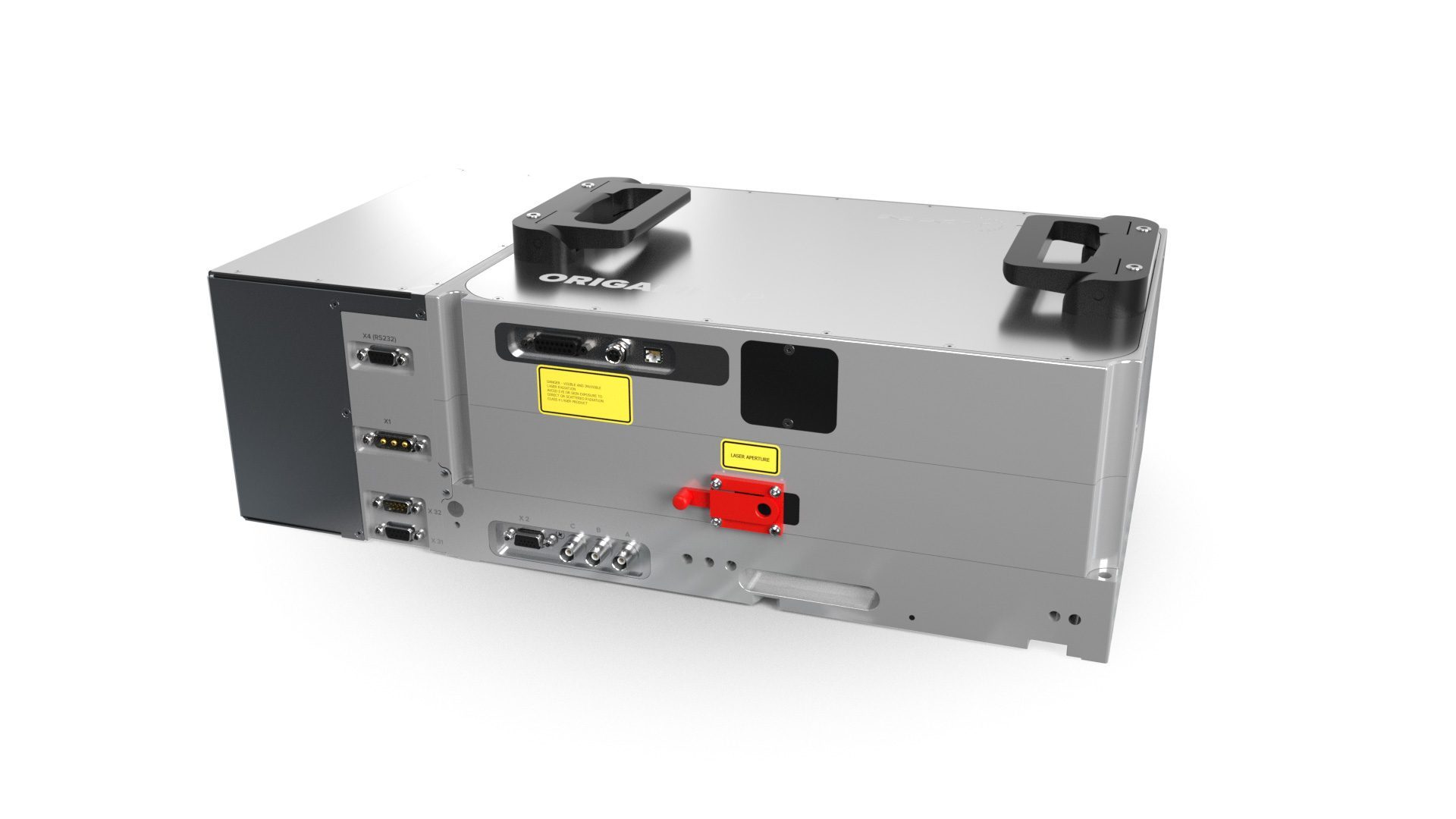

The ORIGAMI XP has been designed for easy and cost-effective integration. It comes with removable handles and offers full remote control capabilities. A simple through-hole mounting system and high precision mechanical referencing planes ensure straightforward drop-in installation.

Benefit from clean, ultrashort pulse duration, superior beam quality, and unprecedented beam pointing by virtue of monolithic system design.

It sets new standards for all-in-one femtosecond lasers in medical device manufacturing and ultra-high precision micromachining applications.

Integrate your ORIGAMI with a galvanometer scanner

You can use the ORIGAMI XPS with a range of galvanometer scanners. In our application lab, we have made set-ups for three widely used scanner control boards. Learn how to do it.

Specifications

Choose model:

ORIGAMI 10 XP

ORIGAMI 10 XPS

ORIGAMI 10 XPS Tunable pulse

Center wavelength

1030 nm

1030 nm

1030 nm

Pulse duration

<370 fs

<370 fs

< 370 fs to 5 ps

Average power

>4 W

>5 W

>5 W

Pulse energy

40 µJ

70 µJ

70 µJ

Peak power

>80 MW

>150 MW

>150 MW

Spectral bandwidth

< 7.5 nm

< 7.5 nm

< 7.5 nm

Pulse selection options

Single-shot to 1MHz

Single-shot to 1MHz

Single-shot to 1MHz

Beam quality, TEMοο

M² <1.2

M² <1.2

M² <1.2

PER

>22 dB vertical

>22 dB vertical

>22 dB vertical

Power stability (12h – constant temperature)

<1% rms

<1% rms

<1% rms

Ellipticity

<1.1

<1.1

<1.1

Pulse-to-pulse stability

<1% rms

<1% rms

<1% rms

Pointing stability 12h const. temp.

<30 μrad rms

<30 μrad rms

<30 μrad rms

Pointing stability 18-28 °C

<15 μrad / °C

<15 μrad / °C

<15 μrad / °C

Laser output

Collimated free space

Collimated free space

Collimated free space

ORIGAMI 10 XP

ORIGAMI 10 XPS

ORIGAMI 10 XPS Tunable pulse

Warm-up time (warm start)

<10 minutes

<10 minutes

<10 minutes

Warm-up time (cold start)

<30 minutes

<30 minutes

<30 minutes

Operation temperature

18 °C – 28 °C

18 °C – 28 °C

18 °C – 28 °C

Storage temperature

-20 °C – 55 °C

-20 °C – 55 °C

-20 °C – 55 °C

Size laser head,  WxHxD

508 x 176 x 292 mm

508 x 176 x 292 mm

508 x 176 x 292 mm

Size power supply, WxHxD

165 x 85 x 314 mm

165 x 85 x 314 mm

165 x 85 x 314 mm

Weight laser head (water-cooled)

28 kg

28 kg

28 kg

Weight laser head (air-cooled)

28 kg

28 kg

28 kg

Cooling

Air or water

Air or water

Air or water

ORIGAMI 10 XP

ORIGAMI 10 XPS

ORIGAMI 10 XPS Tunable pulse

Power supply

24 VDC / 20 A or 90-264 VAC, 47-63 Hz

24 VDC / 20 A or 90-264 VAC, 47-63 Hz

24 VDC / 20 A or 90-264 VAC, 47-63 Hz

Power consumption

<500 W

<500 W

<500 W

Add frequency conversion to your ORIGAMI

With our highly reliable frequency conversion modules you can get up to three outputs in the UV, green and IR.

ORIGAMI XP – green harmonic 2 port

ORIGAMI XP – UV harmonic 2 port

ORIGAMI XP – UV harmonic 3 port
