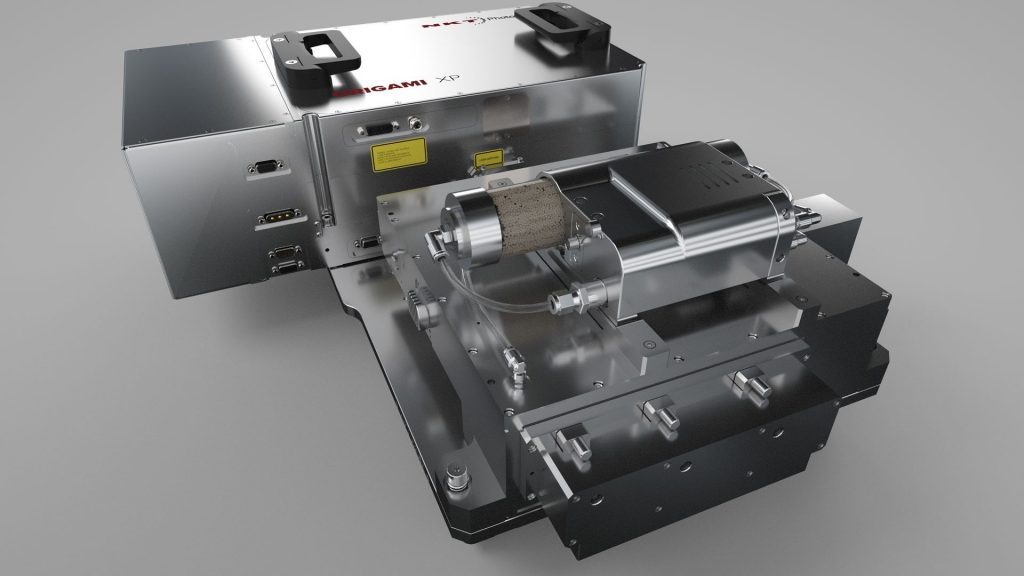

ORIGAMI XP – green, UV, and IR harmonic 3 port
Triple switchable wavelength capability
Further flexibility is provided with the harmonic 3 port, providing switchable 1030 nm, 515 nm, and 343 nm with pulse energies of 40 µJ, 15 µJ, and 12 µJ respectively. Wavelength switching is software controlled.
Specifications
Choose model:
IR Port
Green Port
UV Port
Center wavelength
1030 nm
515 nm
343 nm
Pulse duration
<370 fs
<350 fs
<300 fs
Average power
>5 W
>1.5 W
>2 W
Pulse energy
70 µJ
15 µJ
12 µJ
Peak power
>150 MW
–
–
Spectral bandwidth
< 7.5 nm
< 4 nm
< 4 nm
Pulse selection options
Single-shot to 1MHz, Pulse-on-Demand
Single-shot to 1MHz, Pulse-on-Demand
Single-shot to 1MHz, Pulse-on-Demand
Beam quality, TEMοο
M² <1.3
M² <1.3
M² <1.3
PER
>17 dB horizontal
>20 dB horizontal
>20 dB vertical
Beam diameter ± 10%
–
2.0
2.0
Beam divergence (2σ) [mrad]
–
< 1.0 (2σ) [mrad]
< 1.0 (2σ) [mrad]
Power stability (12h – constant temperature)
<1% rms
<1.5% rms
<2% rms
Beam circularity 1)
–
> 0.85
> 0.85
Ellipticity
<1.2
<1.2
<1.2
Pulse-to-pulse stability
<1% rms
–
–
Pointing stability 12h const. temp.
<30 μrad rms
<30 μrad rms
<30 μrad rms
Pointing stability 18-28 °C
<15 μrad / °C
<5 μrad / °C
<5 μrad / °C
Laser output
Collimated free space
Collimated free space
Collimated free space
Wavelength switching
–
< 1
< 1
1) Measured at 300mm from aperture
IR Port
Green port
UV Port
Warm-up time (warm start)
–
<10 minutes
<10 minutes
Warm-up time (cold start)
–
<30 minutes
<30 minutes
Operation temperature
–
18 °C – 28 °C
18 °C – 28 °C
Storage temperature
–
-20 °C – 55 °C
-20 °C – 55 °C
Size laser head, WxHxD
–
675.2 x 222.6 x 585.4 mm
675.2 x 222.6 x 585.4 mm
Size power supply, WxHxD
–
165 x 85 x 314 mm
165 x 85 x 314 mm
Weight laser head (water-cooled)
–
52 kg
52 kg
Weight laser head (air-cooled)
–
52 kg
52 kg
Cooling
Air or water
Air or water
IR Port
Green Port
UV Port
Power supply
–
24 VDC/20A or 90-264 VAC, 47-63 Hz
24 VDC/20A or 90-264 VAC, 47-63 Hz
Power consumption
–
<500 W
<500 W
