SuperK EVO

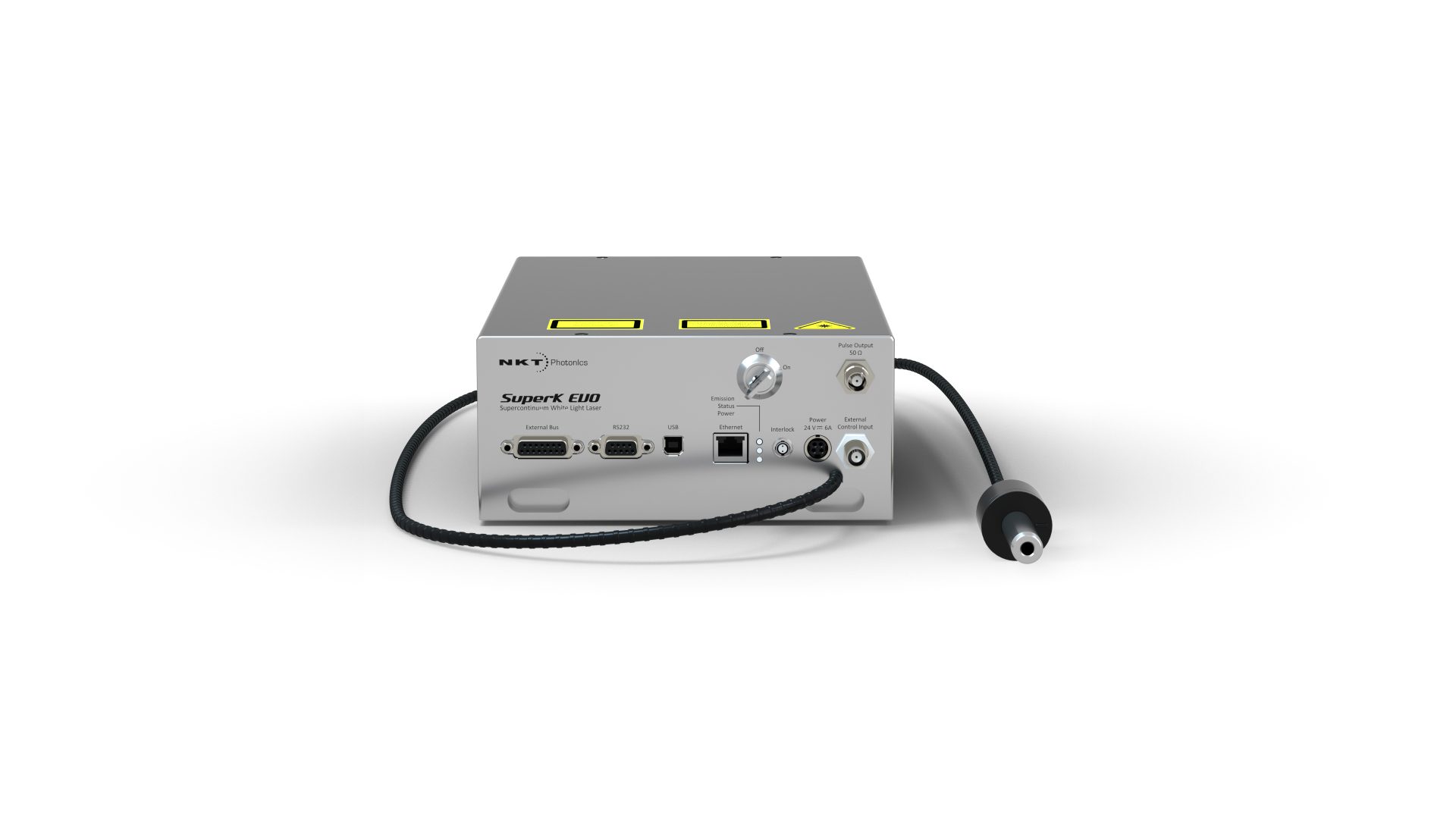

SuperK EVO – Industrial reliability and compact footprint

The SuperK EVO supercontinuum white light lasers are designed for industrial applications. You get high brightness in the 400-2400 nm range, coverage across VIS, SWIR, and nIR, and a customizable spectrum.

Based on our reliable fiber laser technology, the SuperK EVO is stable and maintenance-free, perfect for OEM integration to replace lamps, LEDs, ASE sources, and single-line lasers.

Key Features

Cost-efficient industrial laser platform

High brightness and repetition rate

Robust and compact industrial design

Free software development kit

Maintenance-free 24/7 operation

Models and options

EVO ERL-04
EVO ERL-04
Spectral coverage 500-2000 nm
Total power ≈ 1 W
Options
Custom filter. Custom output solutions. Extended warranty.
EVO EUL-10
EVO EUL-10
Spectral coverage 405-2400 nm
Total power ≈ 0.3 W
Options
Custom filter. Custom output solutions. Extended warranty.
EVO HP EU-4
EVO HP EU-4
Spectral coverage 410-2400 nm
Total power ≈ 2 W
Options
Air or water cooling. Custom filter. Custom output solutions. Extended warranty.

Want to know more?

Get in touch with one of our supercontinuum experts to learn more

We use the SuperK for measuring photodetectors based on graphene and 2d materials. Because it’s broadband and it’s very easy to select a single or multiple wavelengths, it’s perfect for our work. In addition, the SuperK is very stable and reliable; it has never broken down in 4 years.

Dr. Frank Koppens  ICFO- The Institute of Photonic Sciences

Broad as a lamp, bright as a laser

The SuperK EVO lasers deliver high brightness white light in the 400-2400 nm range. The light is fiber-delivered with a pristine beam quality, ready to use as-is, or for further filtering and beam shaping to fit your application.

While the output spectrum of the SuperK EVO is like that of a lamp, the brightness is 100 times higher. Combined with a standard repetition rate up to 78 MHz and output power of up to 2 W, the SuperK EVO line is optimized for speed and throughput.

Use it for optical device characterization, sorting, test & measurement, or bio-imaging applications such as Fluorescence-Lifetime Imaging Microscopy.

All EVO models have output triggers that ensure your equipment is in perfect sync and ready to work when you are.

00:00
/
00:00

Install and forget

Our renowned Photonic Crystal Fiber (PCF) technology is the heart of the SuperK EVO. This solid-state, all-fiber architecture ensures a reliable 24/7 operation and a maintenance-free lifetime of thousands of hours.

Continuous testing of multiple systems has ensured the longest lifetime in the market. Intended for industrial use, the EVO is easy to mount and handle due to its rugged and compact design. Reliability, quality, and performance are ensured through the DIN ISO 9000 certified processes.

Specifications

Choose model:
EVO ERL-04
EVO EUL-10
EVO HP EU-4
Repetition rate
20 MHz
30 MHz
20 MHz
Spectral coverage
500-2000 nm
405-2400 nm
410-2400 nm
Total power
≈ 1 W
≈ 0.3 W
≈ 2 W
Total visible power (350-850 nm)
> 40 mW
> 60 mW
> 400 mW
Total power stability, RMS
± 1%
± 1%
± 1%
Cut-in wavelength 1)
500 nm
425 nm
410 nm
Polarization
Random
Random
Random
Beam quality, TEM00
M2 < 1.1
M2 < 1.1
M2 < 1.1
Mode field diameter, FC/APC
≈ 3 µm
N.A.
N.A.
Beam diameter (collimated) @ 532 nm
≈ 1 mm
≈ 1 mm
≈ 1 mm
Beam diameter (collimated) @ 1100 nm
≈ 2 mm
≈ 2 mm
≈ 2 mm
Beam diameter (collimated) @ 2000 nm
≈ 3 mm
≈ 3 mm
≈ 3 mm
Laser output
Gaussian, single-mode
Gaussian, single-mode
Gaussian, single-mode
Fiber output
Collimated or FC/APC (on request)
Collimated
Collimated

1) Spectral power density > 0.1 mW/nm

EVO ERL-04
EVO EUL-10
EVO HP EU-4
System cooling
Passive 1)
Passive 1)
Air 2) or water
Operation temperature
+18 to +35°C
+18 to +35°C
+18 to +35°C
Storage temperature
-10 to +60°C
-10 to +60°C
-10 to +60°C
Dimensions (WxHxL) – passive
200 x 90 x 325 mm
200 x 90 x 325 mm
Dimensions (WxHxL) – water-cooled
200 x 93 x 325 mm
Dimensions (WxHxL) – air-cooled
200 x 166.5 x 325 mm
Weight
6 kg
6 kg
12 kg

1) Heat radiation from the base plate.
2) Internal fan at a minimum airflow of 80 m3/hour is needed.

Passively cooled

Water-cooled

Air-cooled

EVO ERL-04
EVO EUL-10
EVO HP EU-4
Computer interface
USB 2.0/RS-232/Ethernet
USB 2.0/RS-232/Ethernet
USB 2.0/RS-232/Ethernet
Operation consumption
24 V DC
24 V DC
24 V DC
Power consumption 1)
<30 W
<30 W
<60 W
Door interlock connector 2)
2-pin LEMO
2-pin LEMO
2-pin LEMO
External bus interface
15 D-Sub
15 D-Sub
15 D-Sub
Sync (trigger) output
NIM
NIM
NIM
Output fiber length
1.5 m
1.5 m
1.5 m

1) Power consumption depends on the total output power.
2) SuperK EVO is a class 4 laser and must be connected to a door interlock/circuit.
