Optical fibers are at the heart of everything we do. We embed as many functions as possible directly into the fibers to make systems based on our fibers simpler, cheaper, and more reliable.
Our Crystal Fibre portfolio spans from nonlinear fibers for octave-spanning supercontinuum generation, over the World’s largest single-mode ytterbium gain fibers for high-power lasers and amplifiers, to advanced hollow-core fibers guiding the light in air. Get our single-mode LMA fibers as fibers or patch cords with standard termination in our aeroGUIDE product range.
Our ytterbium-doped double-clad fibers offer the largest single-mode cores in the world, enabling amplification to unprecedented power levels while keeping mode quality and stability. Get it as fiber or in a gain module.
Photonic crystal fibers
Photonic crystal fibers (PCFs) are optical fibers that employ a microstructured arrangement of material in a background material of different refractive indexes. The background material is often undoped silica and a low-index region is typically provided by air voids running along the length of the fiber.
PCFs may be divided into two categories, high index guiding fibers and low index guiding fibers. Similar to conventional fibers, high-index guiding fibers are guiding light in a solid core by the Modified Total Internal Reflection (M-TIR) principle. The total internal reflection is caused by the lower effective index in the microstructured air-filled region.
Low-index guiding fibers guide light by the photonic bandgap (PBG) effect. The light is confined to the low-index core as the PBG effect makes propagation in the microstructured cladding region impossible.
The strong wavelength dependency of the effective refractive index and the inherently large design flexibility of the PCFs allow for a whole new range of novel properties. Such properties include endlessly single-mode fibers, extremely nonlinear fibers, and fibers with anomalous dispersion in the visible wavelength region.
Get a 5 minute introduction to our fibers
Watch Senior Product Manager, Dr. Ask Svane, give a short introduction to our fibers and fiber-based modules.
High-index guiding fibers
M-TIR is analogous to total internal reflection known from standard optical fibers. It relies on a high index core region, typically pure silica, surrounded by a lower effective index provided by the microstructured region.
The refractive index of the microstructured cladding in PCFs exhibits a wavelength dependency very different from pure silica – an effect that allows PCFs to be designed with a completely new set of properties not possible with standard technology.
As an example, the strong wavelength dependence of the refractive index allows the design of endlessly single-mode fibers, where only a single mode is supported regardless of the optical wavelength. Furthermore, it is possible to alter the dispersion properties of the fibers, thereby making it possible to design fibers with anomalous dispersion at visible wavelengths.

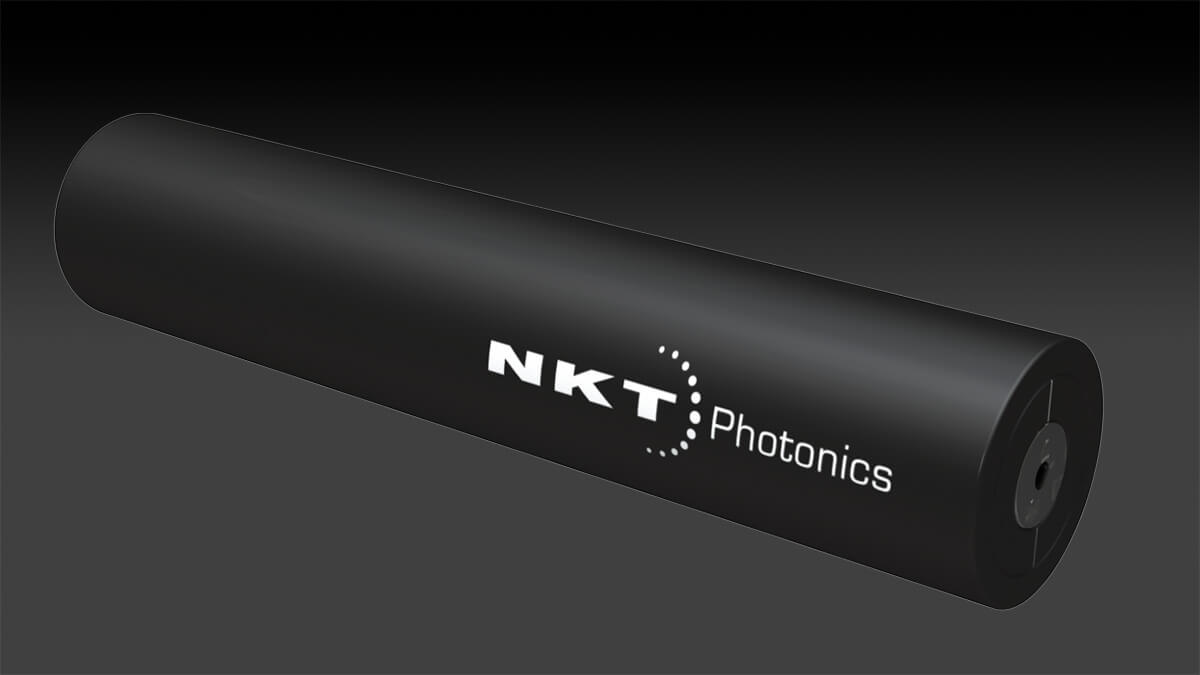

By the combination of a small core and phase-matching dispersion properties close to available pump sources, the PCF technology makes it possible to create very efficient supercontinuum generation.
Due to precise control of the refractive index profile, fibers with extremely large mode field diameters are made possible, supporting high beam quality fiber guidance and amplification/lasing.
The bandgap effect – low index guiding fibers
Photonic bandgap fibers are based on physical mechanisms fundamentally different from the M-TIR guiding fibers. The periodic microstructure in the PBG fiber cladding results in a so-called photonic bandgap, where light in certain wavelength regions cannot propagate.
In a PBG fiber, the core is created by introducing a defect in the PBG structure (e.g. an extra air hole), thereby creating an area where the light can propagate. As the light can only propagate at the defect region, a low-index guiding core has been created. This is not possible in standard fibers, and the low index guiding of PBG fibers, therefore, opens a whole new set of possibilities. In this way, it is possible to guide light in air, vacuum, or any gas compatible with the fiber material.

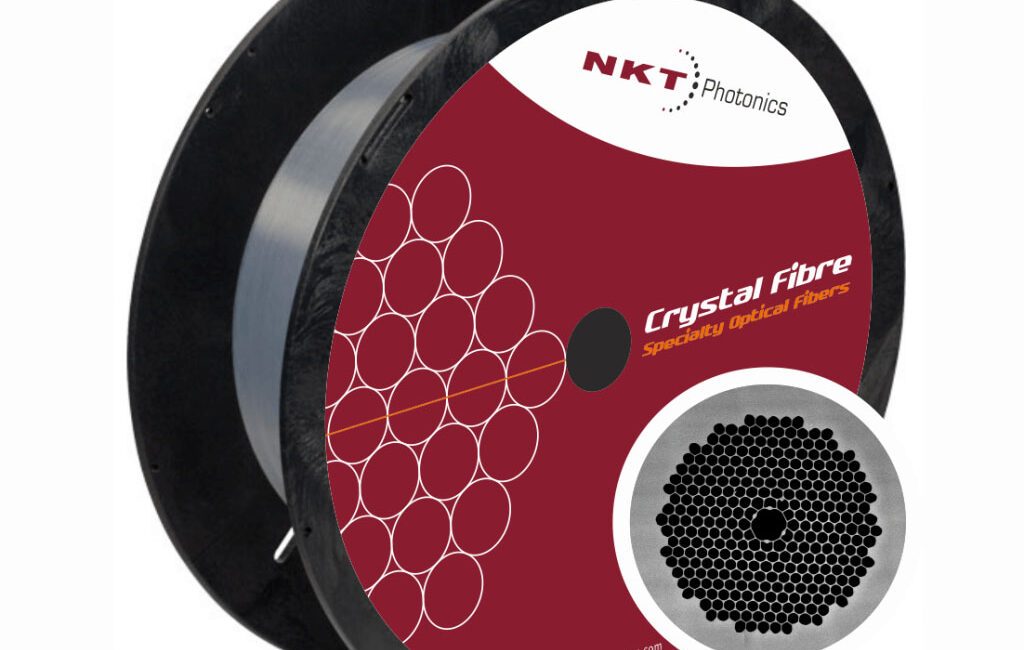

Hollow-core fibers
A special class of PBG guiding fibers is the hollow core fibers, where the field is confined to an air-filled core. Like other PBG fibers, air-core fibers only guide light in a limited spectral region. For fibers guiding around 1550nm, a typical bandwidth is ~200nm. Outside this region, the fiber core is anti-guiding.
A guiding light in a hollow-core holds many promising applications like high power delivery without the risk of fiber damage, gas sensors, or extreme low loss guidance in a vacuum. Furthermore, this class of fiber has other spectacular properties not found in any other fiber type. They are almost insensitive to bending (even at very small bending radii) and they have dramatically reduced sensitivity to Kerr effect (>50), temperature transients (~6.5), and Faraday effect (>10).
Also, extreme dispersion properties, such as anomalous dispersion values in the thousands of ps/nm/km regime are easily obtained. Due to a negligible contribution from the core material (air), the total dispersion of PBG fibers is to a high degree dominated by waveguide dispersion.
Solid core PBG fibers
Another special class of PBG guiding fibers is the solid core PBG fibers. Here, the field is confined to a solid core and the cladding region typically consists of an array of high-index regions embedded in silica material.
Like other PBG fibers, solid-core PBG fibers only guide light in a limited spectral region. This filtering effect in combination with a rare-earth-doped core such as Yb makes lasing and amplification possible at new wavelengths with weak fiber gain. Also, the combination of a doped solid core PBG fiber and special dispersion properties provides a new route for the laser community.
Fabrication
Fabrication of PCF, like in conventional fiber fabrication, starts with a fiber preform. PCF preforms are formed by stacking a number of capillary silica tubes and rods to form the desired air/silica structure. This way of creating the preform allows a high level of design flexibility as both the core size and shape as well as the index profile throughout the cladding region can be controlled.
When the desired preform has been constructed, it is drawn to a fiber in a conventional high-temperature drawing tower and hair-thin photonic crystal fibers are readily produced in kilometer lengths. Through careful process control, the air holes retain their arrangement all through the drawing process and even fibers with very complex designs and high air-filling fractions can be produced.
Finally, the fibers are coated to provide a protective standard jacket that allows robust handling of the fibers. The final fibers are comparable to standard fiber in both robustness and physical dimensions and can be both striped and cleaved using standard tools.
