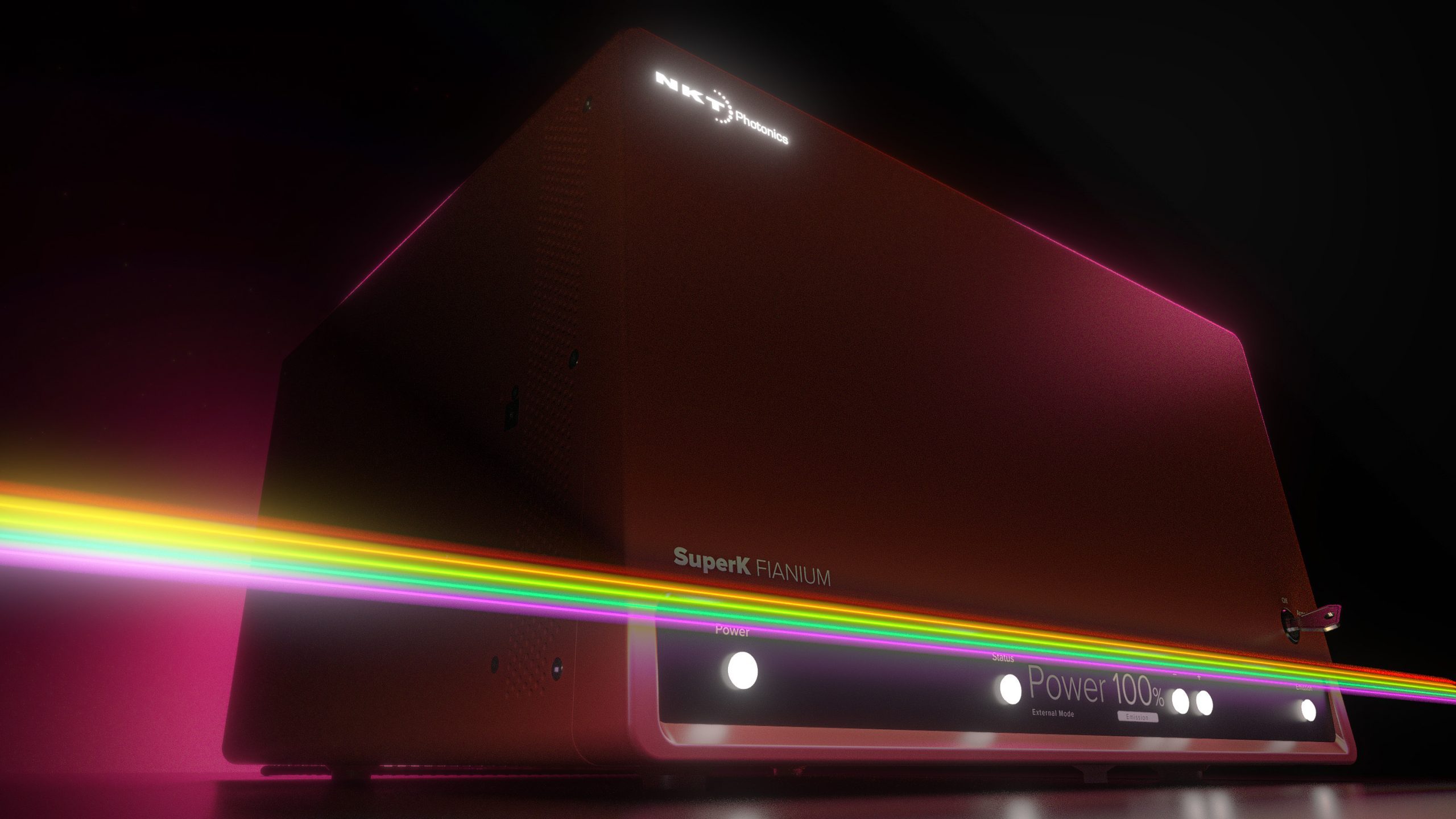

SuperK FIANIUM OCT

SuperK FIANIUM OCT broadband low-noise laser

The SuperK FIANIUM OCT series are broadband, low-noise sources designed for optical coherence tomography. Pair it with a broadband spectrometer to get the same performance as Ti:Sapphire-based OCT systems at much lower cost, smaller footprint, great mobility, and robustness.

The OCT series share the same maintenance-free, reliable, and robust platform as our SuperK FIANIUM series and runs 24/7. And they work by the flip of a switch.

Key Features

Low-noise 390-2400 nm single-mode

Multimodal OCT light source

OCT-optimized filter option

Large bandwidth for micron resolution

Flexible trigger out and power locking

Plug & Play filter accessories

Models and options

FIU-6 OCT
FIU-6 OCT
Cut-in wavelength < 425 nm
VIS Power > 600 mW
Options
Custom MHz repetition rate, Power Lock – external power locking, Warranty extensions.
FIR-9 OCT
FIR-9 OCT
Cut-in wavelength < 580 nm
VIS power > 900 mW
Options
Custom MHz repetition rate, Power Lock – external power locking, Warranty extensions.

Want to know more?

Get in touch with one of our supercontinuum experts

The SuperK is a great source for characterization… It is very broad-band and suitable for characterization both in the visible and near-infrared ranges, high power, very stable, flexible and easy to use.

Prof. Alexandra Boltasseva Birck Nanotechnology Center, Purdue University

The market’s lowest noise

The supercontinuum SuperK FIANIUM OCT series has the market’s lowest noise. It is optimized for low-noise performance to produce high-contrast, low-noise images in Optical Coherence Tomography and multimodality applications.

Combined with a broadband spectrometer, the SuperK FIANIUM OCT can power OCT systems down to 1-2 µm axial resolution.

Low noise ensures high-contrast images

The SuperK FIANIUM OCT supercontinuum laser series has the lowest noise on the market. Optimized for low-noise performance, it gives high-contrast low-noise images in OCT systems. Its performance matches that of costly and bulky Ti:Sapphire lasers.

Below are shown two OCT images of a human eye. The image on the right is recorded using a SuperK FIANIUM OCT source, while the image on the left is obtained using a Ti:Sapphire laser. Both images are recorded by Angelika Unterhuber from Prof. Dr. Wolfgang Drexlers group at Medical University Vienna.

High beam quality

The SuperK FIANIUM series is perfect for applications that need high-performance beam output. Diffraction-limited output from a proprietary collimator design ensures superb single-mode broadband collimation at high power.

High pointing accuracy and broadband beam collimation make filtering and beam-steering operations very precise. The excellent single-mode Gaussian beam quality ensures that you can couple light back into the single-mode fiber at efficiencies up to 70%.

SuperK near-field

Ready-to-use and fail-safe operation

Operating the SuperK FIANIUM OCT is easy and intuitive for all users, no laser expertise is needed. Get supercontinuum light at a press of a button!

The emission button lets you switch the light on and off without the need to reduce the optical power or wait for the system to warm up or cool down. In standby mode, the laser remembers the latest power or current setting and returns to the same level when the emission is re-activated.

You can get access to all laser functions from the SuperK CONTROL graphical user interface on a PC.

A maintenance-free lifetime of thousands of hours

The SuperK series is based on NKT Photonics’ world-renowned Crystal Fibre technology that has reliably delivered supercontinuum to both commercial and academic users for over 15 years.

Our lasers are fully fiber monolithic which ensures excellent reliability and a lifetime of thousands of hours – as well as maintenance-free and alignment-free operation. For scientific applications, we offer a 2-year warranty.

NKT Photonics is the largest manufacturer of PCF technology and reliability, quality, and performance are ensured through DIN ISO 9000 certified processes. Continuous testing of multiple systems during and after the development phase has ensured the longest continuous running lifetime in the market.

The SuperK FIANIUM is a cost-effective and user-friendly alternative to Ti:Sapphire solutions.

Specifications

Choose model:
FIU-6 OCT
FIR-9 OCT
Repetition rate
312 ± 3 MHz
312 ± 3 MHz
Total visible power (350-850 nm)
>600 mW
>900 mW
Total power
6.5 W
6.5 W
Power stability
± 0.5%
± 0.5%
Cut-in wavelength (>0.1 mW/nm)
<425 nm
<580 nm
Polarization
Random
Random
Beam quality
M2 < 1.1
M2 < 1.1
Beam diameter @ 532 nm
≈ 1 mm
≈ 1 mm
Beam diameter @ 1100 nm
≈ 2 mm
≈ 2 mm
Beam diameter @ 2000 nm
≈ 3 mm
≈ 3 mm
Beam pointing accuracy
< 1 mrad
< 1 mrad
Beam divergence (half-angle)
< 5 mrad
< 5 mrad
Beam pointing accuracy 1)
Gaussian, single-mode
Gaussian, single-mode

1) Measured relative to the mechanical axis running through the center of the collimator.

FIU-6 OCT
FIR-9 OCT
System cooling
Air-cooled
Air-cooled
Operation temperature
+18o to +30oC
+18o to +30oC
Storage temperature
-10o to +55oC
-10o to +55oC
Dimensions (WxHxL)
440 x 251 x 400 mm
440 x 251 x 400 mm
Weight
18 kg
18 kg
FIU-6 OCT
FIR-9 OCT
Computer interface
USB 2.0/RS-232/Ethernet
USB 2.0/RS-232/Ethernet
Operation voltage
100-240 VAC 50/60 Hz
100-240 VAC 50/60 Hz
Power consumption
<100 W
<100 W
Door interlock connector
2-pin LEMO
2-pin LEMO
External bus interface
16-pin sub-D
16-pin sub-D
