SuperK CONNECT broadband fiber delivery

SuperK CONNECT is a high-performance, high-precision fiber delivery system. The broadband fibers give a coverage of the 400-2000 nm spectrum.

You can choose from a range of fiber termination options, such as various FC connectors and collimators. The SuperK CONNECT ensures easy and stable single-mode coupling you can disconnect and reconnect without alignment.

Key Features

400-2000 nm coverage

High power levels of 500 mW

PM or non-PM

FC/PC, FC/APC or collimated output

Stable and efficient fiber coupling unit

Easy Plug & Play fiber delivery

Want to know more?

Get in touch with one of our supercontinuum experts

Call us Message us

The SuperK CONNECT can be used as fiber delivery for SuperK supercontinuum sources and accessorie,s or single mode lasers.
Configure it to your need with:

  • Connector termination or high quality collimator
  • Normal loose tube / kevlar jacket or robust armored steel cable
  • Up to 10 m in length
  • CONNECT two-axis precision fiber coupling unit

Typical transmission curves for the different fibers

00:00
/
00:00

Specifications

Choose model:
Single-mode cut-off wavelength
Transmission 2)
Typ. peak transmission 2)
FD1-PM
425 ± 25 nm
60% (425-775 nm)
75% @ 650 nm
FD3-PM
580 ± 40 nm
65% (580-950 nm)
85% @ 650 nm
FD4-PM
710 ± 60 nm
65% (710-1100 nm)
70% @ 900 nm
FD5-PM
900 ± 70 nm
50% (900-1500 nm)
60% @ 1200 nm
FD6-PM
1200 ± 70 nm
30% (1200-1900 nm)
35% @ 1700 nm
FD7-PM 1)
< 400 nm
70% (450-950 nm)
80% @ 600 nm

1) Endlessly single-mode LMA fiber.

2) Valid for FC connectorized fibers. Transmission through collimated fibers is approximately 10% lower. Fibers can be used above the indicated wavelength interval, where transmission falls off smoothly.

Single-mode cut-off wavelength
Transmission 1)
Typ. peak transmission 1)
FD2
450 ± 25 nm
60% (450-775 nm)
80% @ 650 nm
FD3
630 ± 20 nm
60% (630-1100 nm)
80% @ 800 nm
FD4
730 ± 30 nm
70% (730-1150 nm)
80% @ 950 nm
FD5
930 ± 40 nm
50% (930-1550 nm)
65% @ 1350 nm
FD6
1260 ± 40 nm
30% (1260-1900 nm)
40% @ 1650 nm
FD7 2)
< 400 nm
70% (450-1050 nm)
80% @ 750 nm
FD8 2)
< 800 nm
40% (800-1700 nm)
55% @ 1300 nm
FD9 2)
< 500 nm
50% (500-1300 nm)
60% @ 900 nm
FD10 3)
N/A
80% (500-1100 nm)
90% @ 750 nm

1) Valid for FC connectorized fibers. Transmission through collimated fibers is approximately 10% lower. Fibers can be used above the indicated wavelength interval, where transmission falls off smoothly.

2) Endlessly single-mode LMA fiber.

3) Multimode fiber.

CONNECT
Dimensions (WxHxL)
46 x 70 x 93 mm
Fiber length
2.5 m ± 0.1 (5 m or 10 m available upon request)
Output beam quality
Single-mode
Fiber output termination
FC/PC, FC/APC, or collimator 1)
FC key width
2.0 mm (Narrow key)
Kevlar fiber jacket or
3 mm kevlar reinforced furcation tube
steel fiber jacket
or armored steel
Max. supercontinuum power
500 mW, aligned
Key alignment
Slow axis, PM

1) Also available with SMA connector.

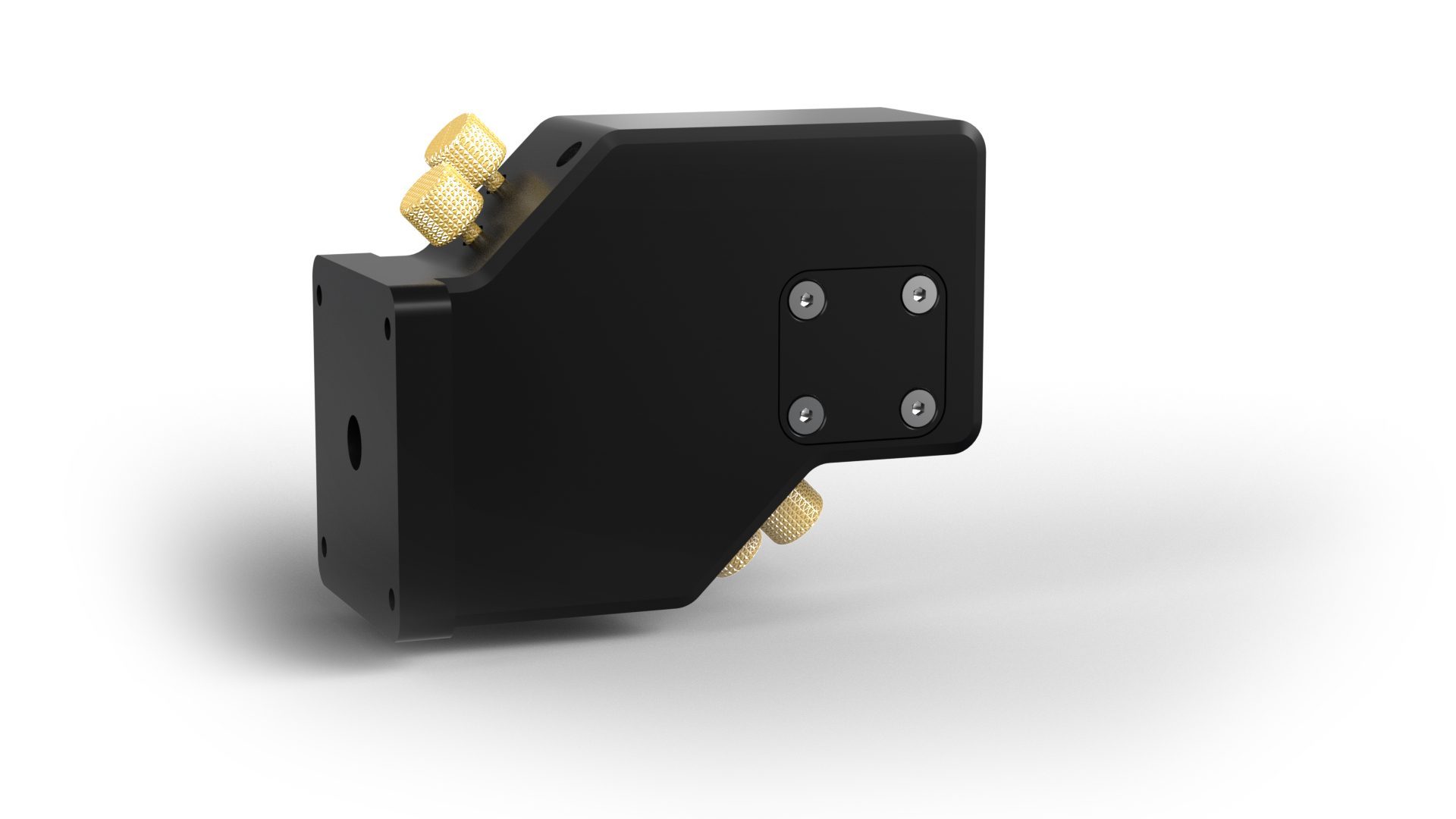

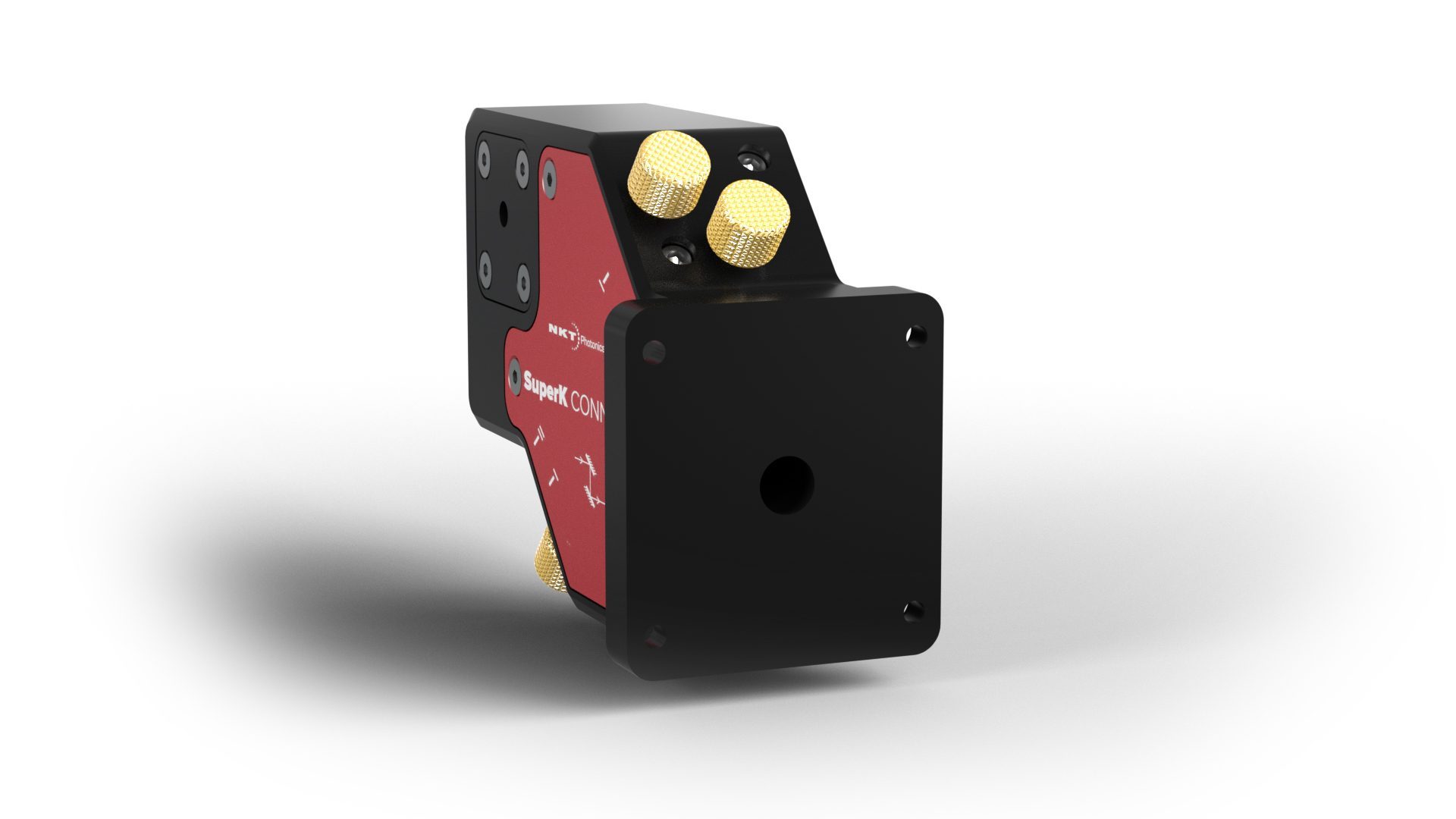

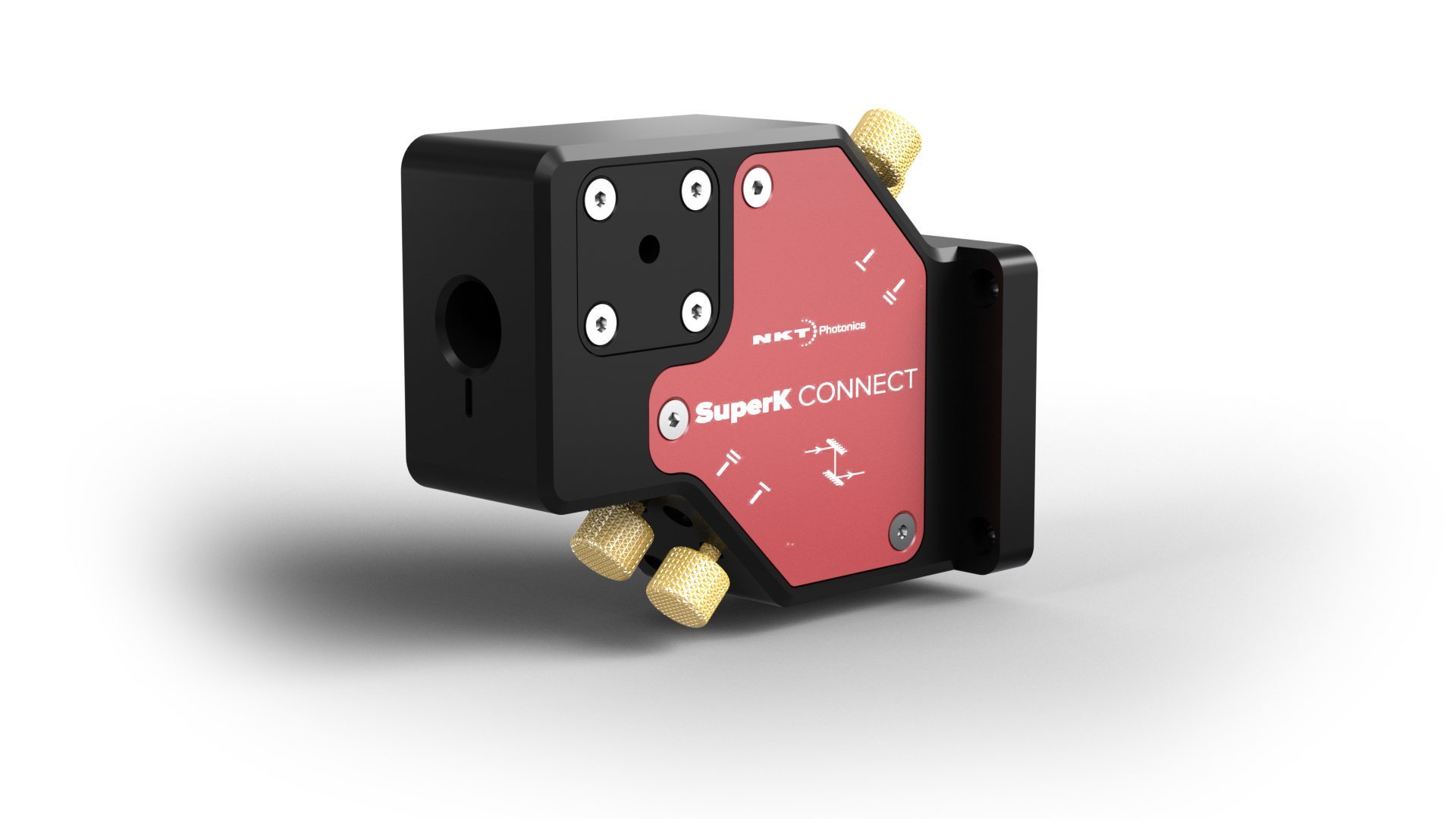

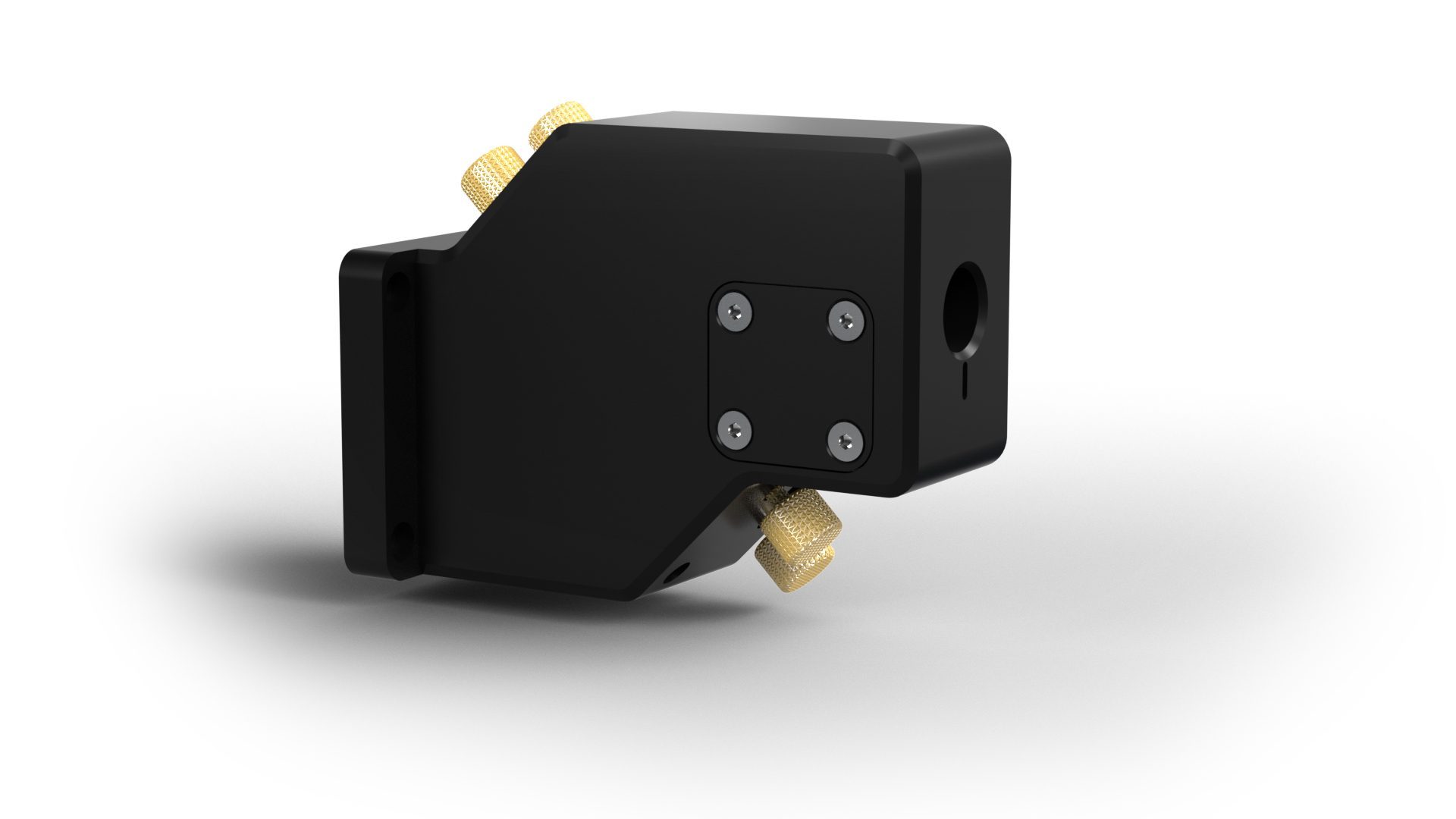

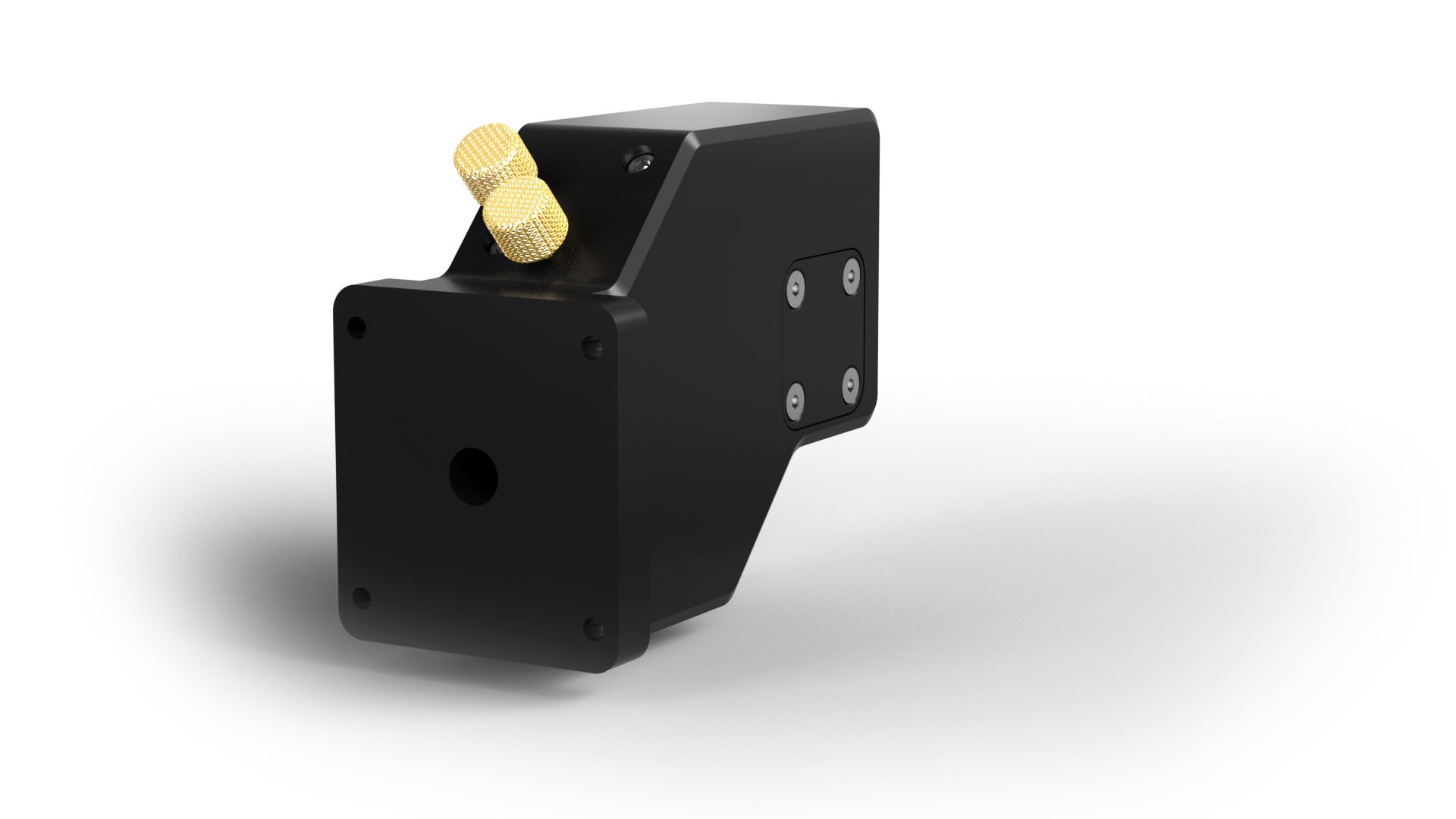

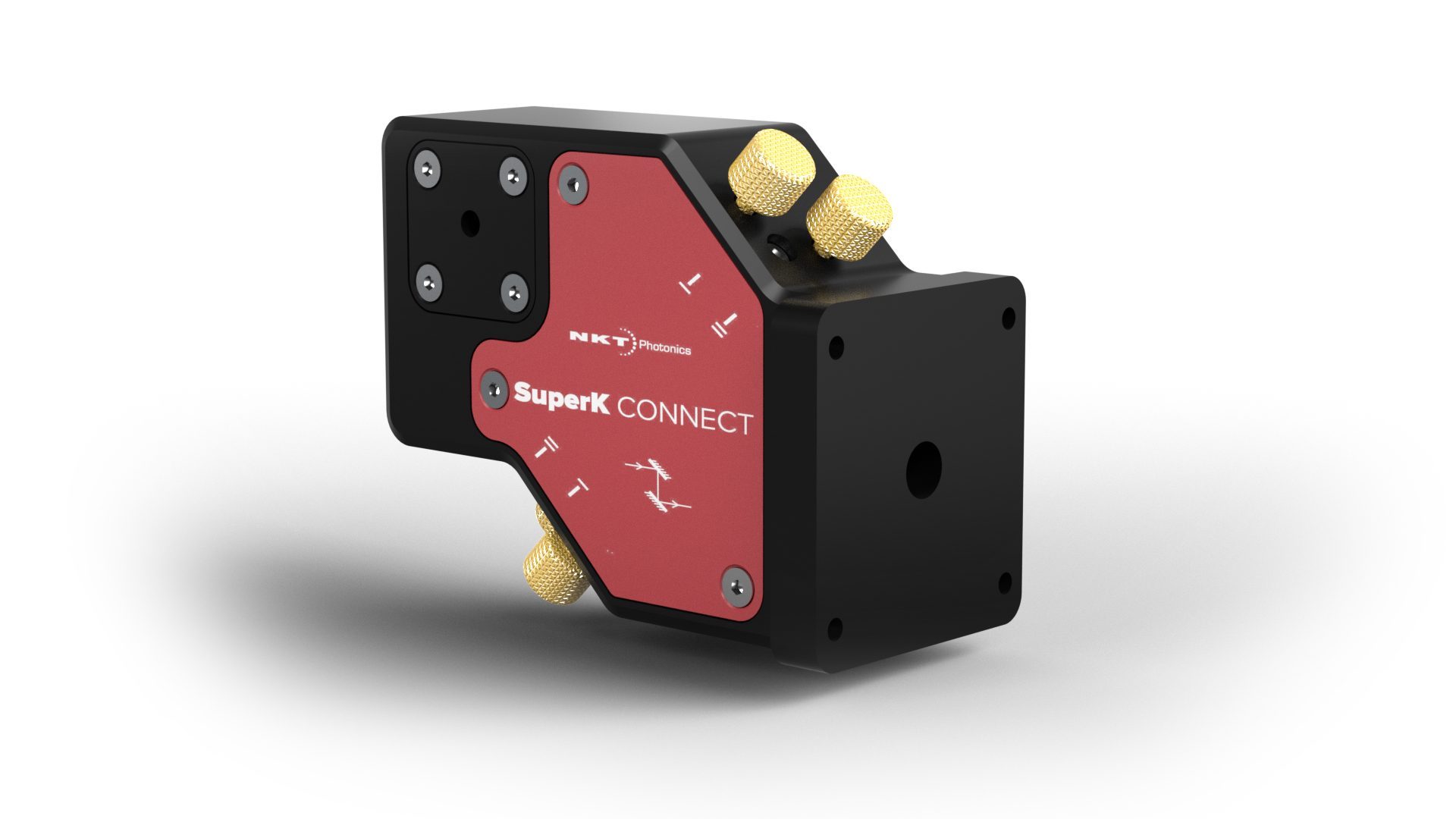

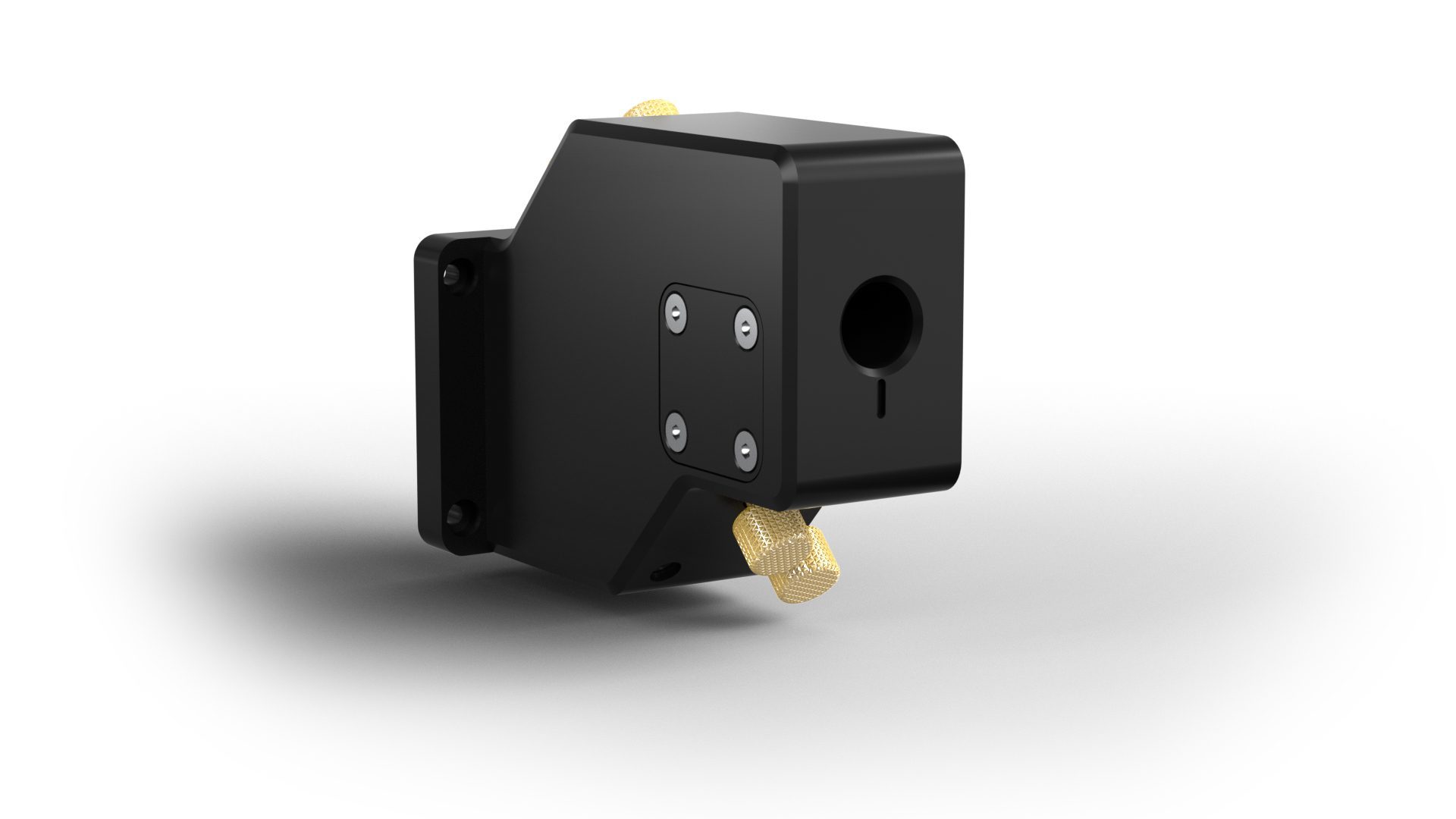

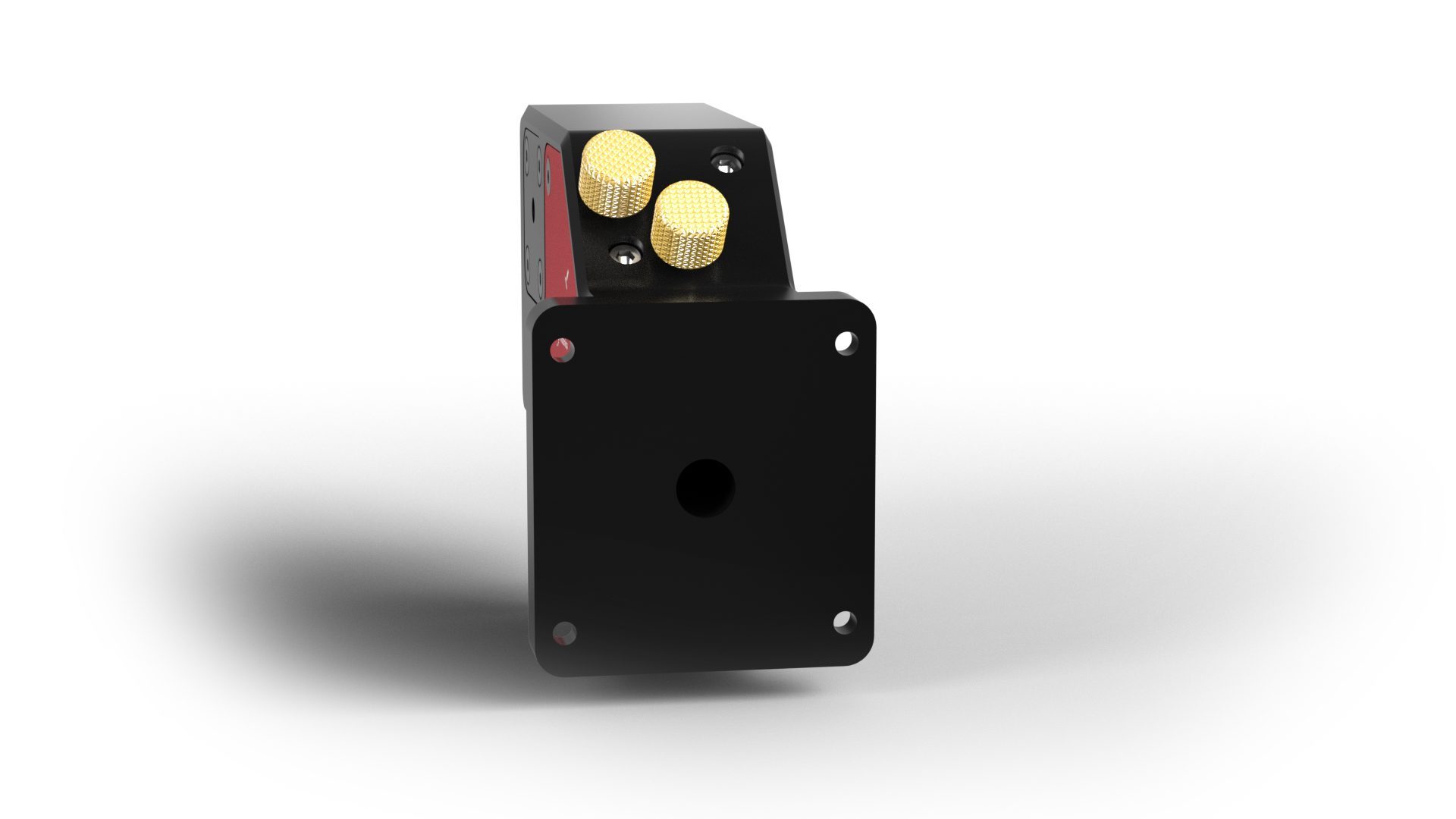

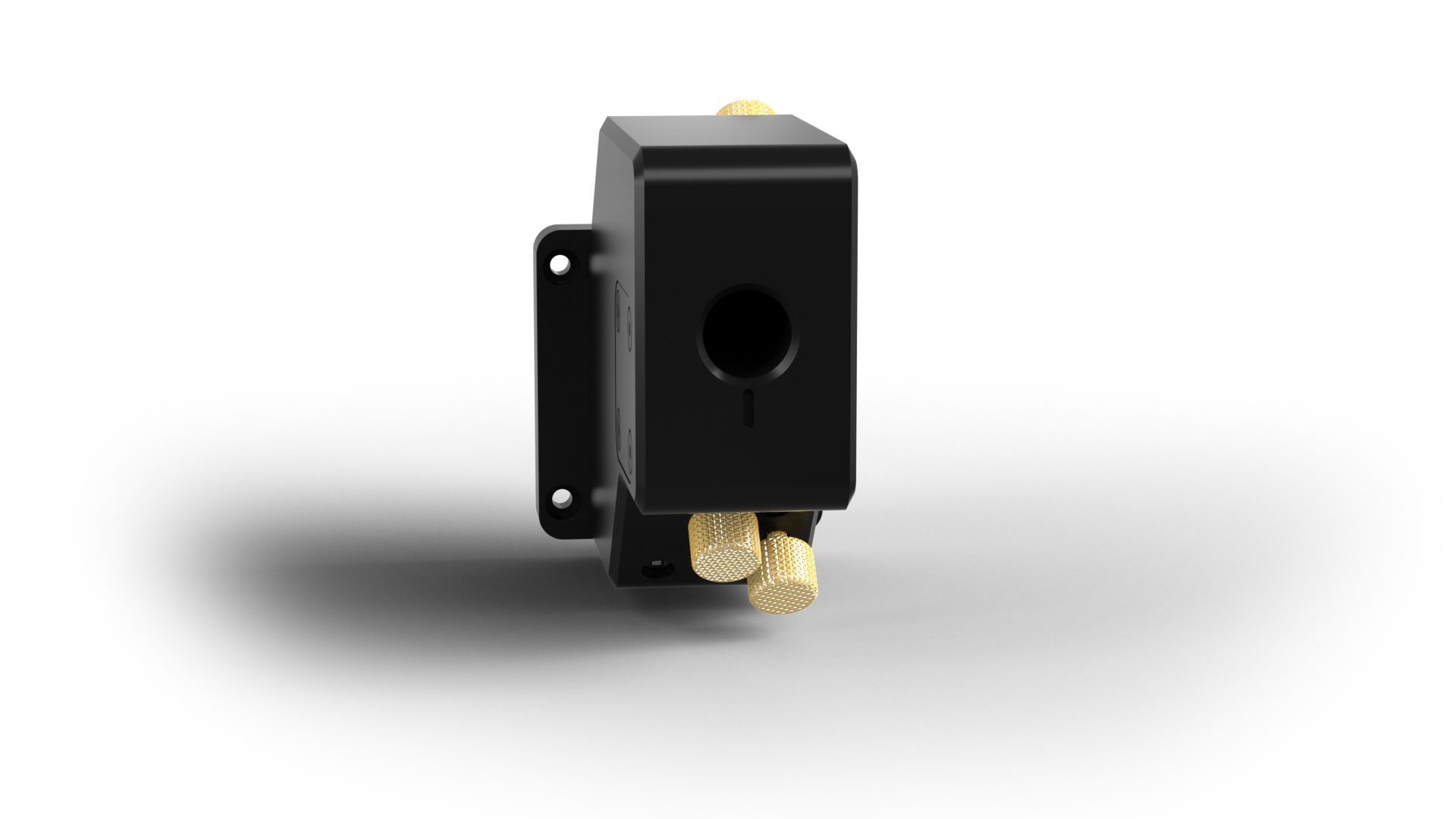

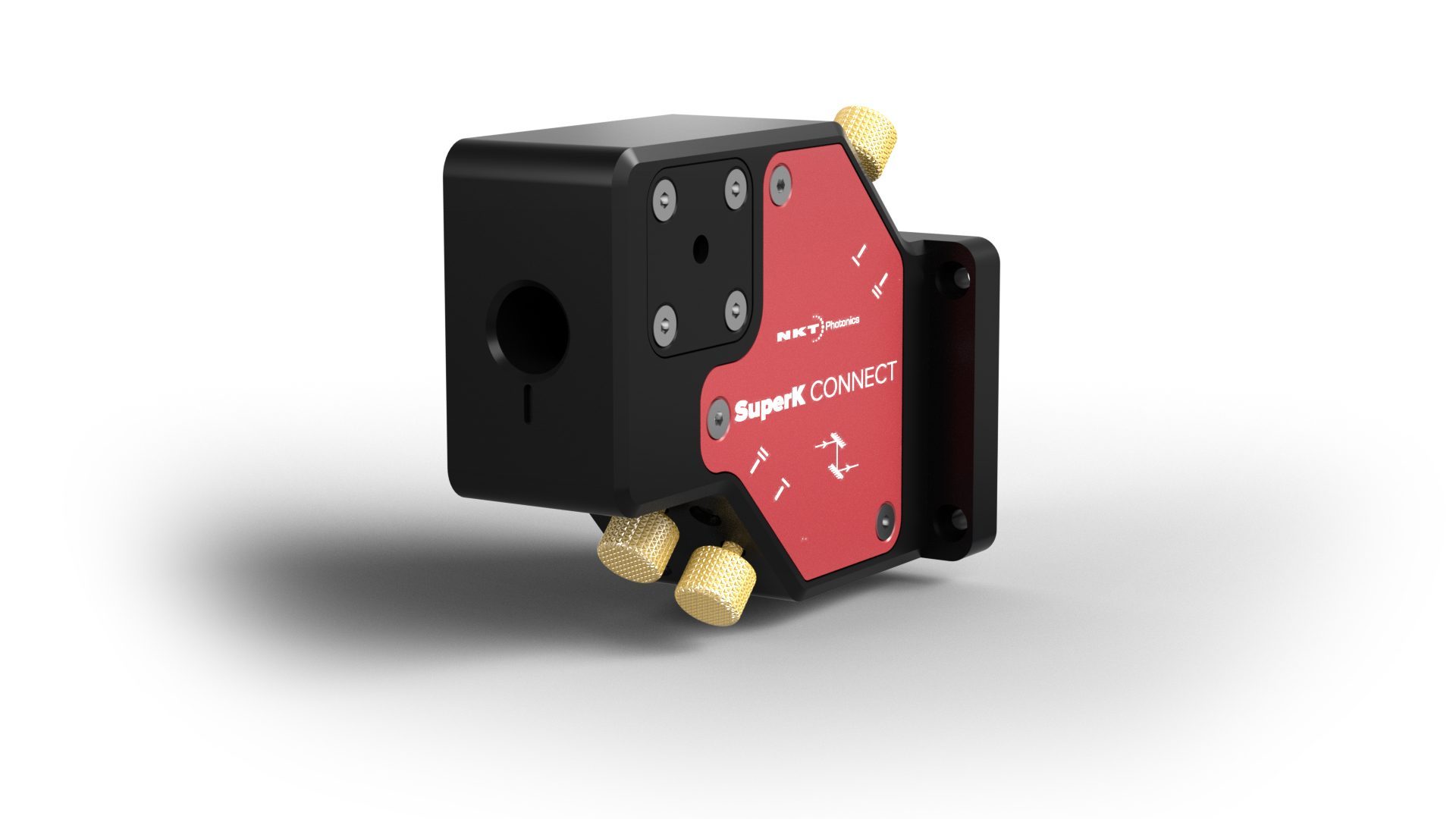

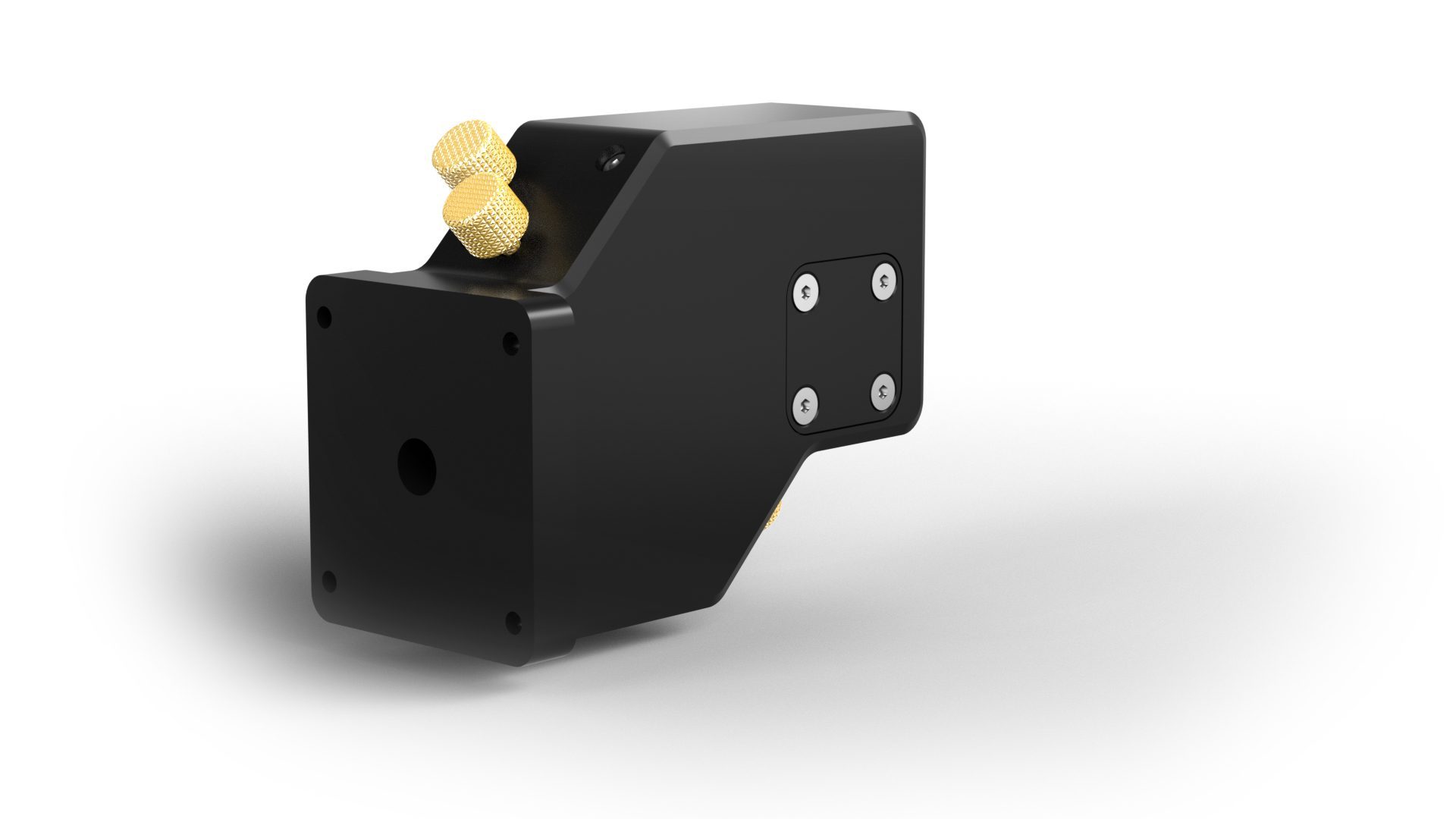

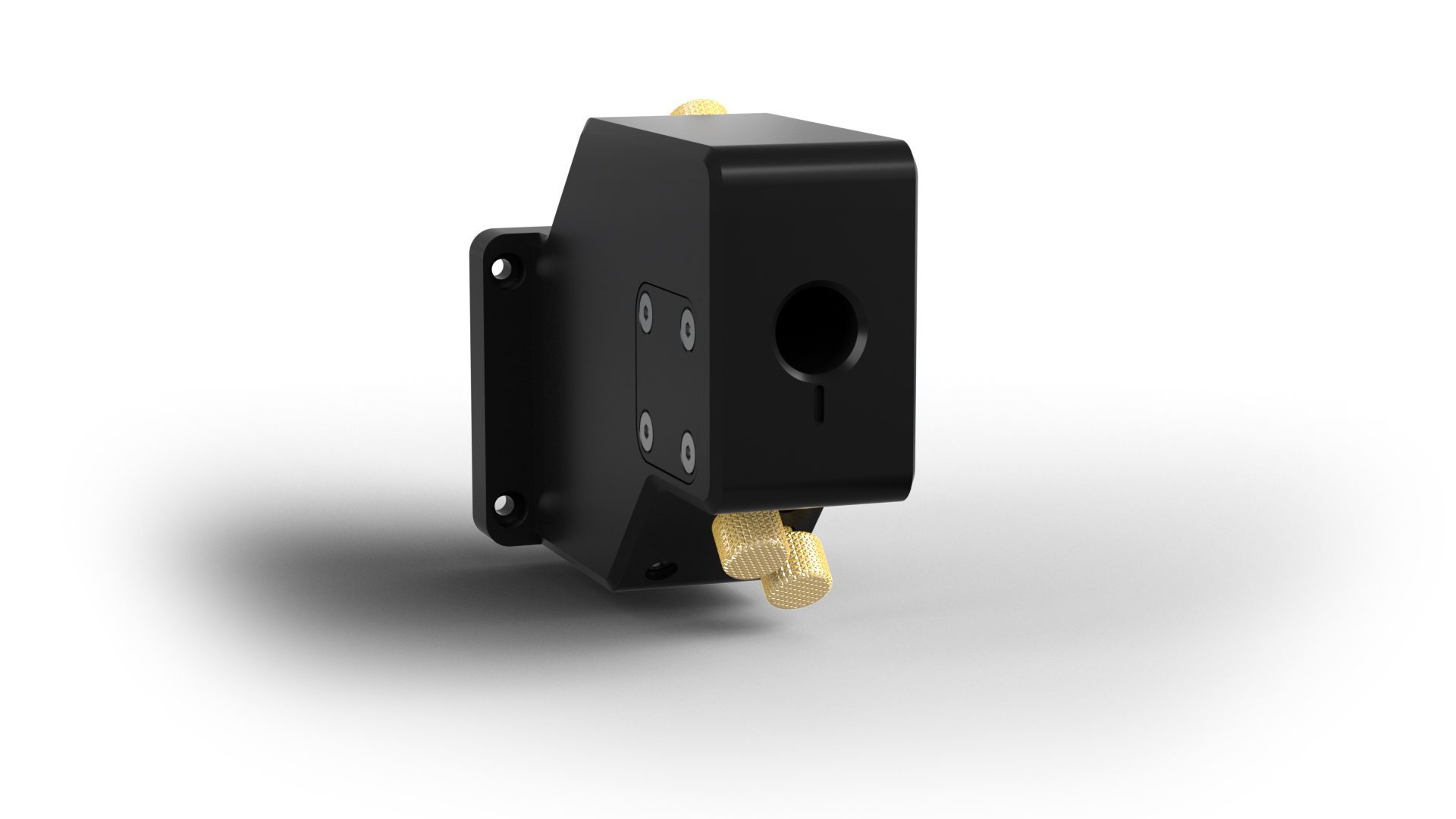

CONNECT fiber delivery system

Coupler and collimator CONNECT fiber delivery system
