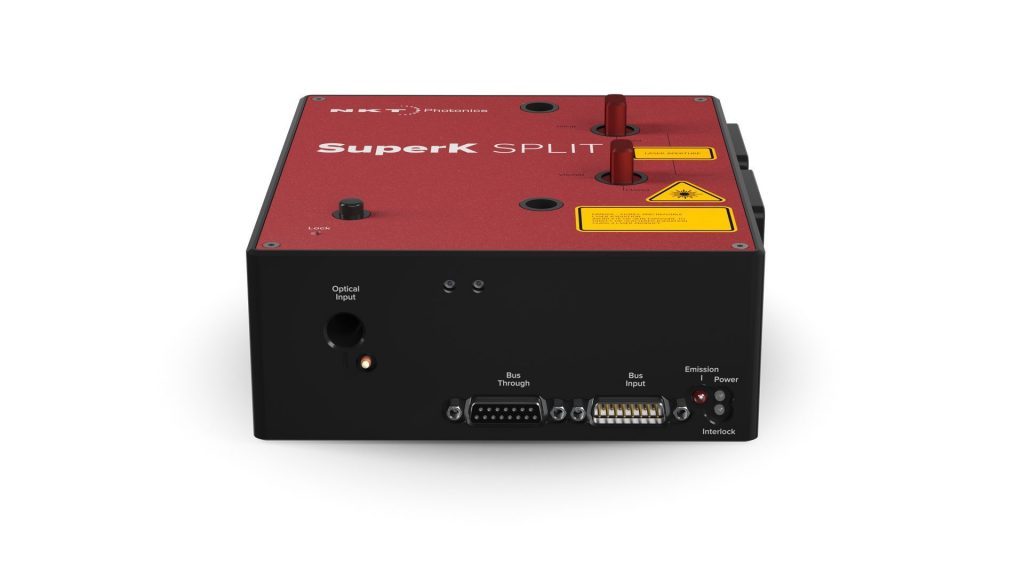

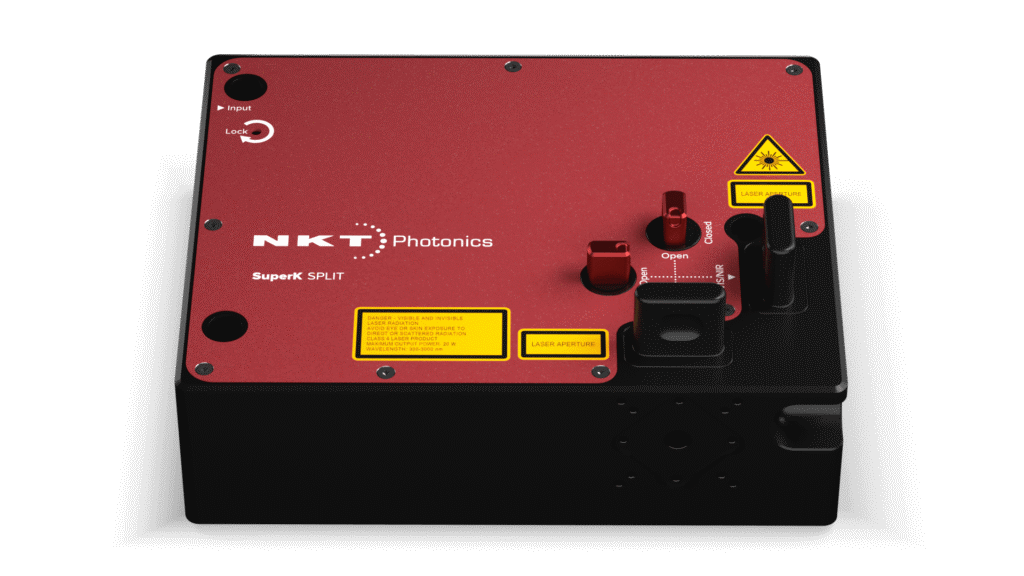

SuperK SPLIT – spectral splitter
The SuperK SPLIT is a passive filter that divides the SuperK spectrum into two broadband spectral outputs.
As a standard, the SuperK SPLIT has two outputs: Visible and nIR. You can choose the ‘split’ between the bands to be anywhere in the SuperK spectrum.
![](https://www.nktphotonics.com/wp-content/uploads/2021/11/superk-split-spin--00018-800x450.jpg)
Key Features
Separation of VIS from nIR
Industrially proven fiber coupling
Various fiber interfaces
Modular and integrable into SuperK lasers
Plug & Play accessory
The SuperK SPLIT lets you separate VIS from nIR
The SPLIT comes in two standard configurations: VIS/IR and nIR/IR. If you need other wavelength splits, please ask us.
Output options
As standard, the SuperK SPLIT provides collimated, free-space output. The SPLIT can be fitted with our CONNECT fiber delivery. The CONNECT is a high-performance fiber delivery system complete with broadband fibers and a range of termination options such as FC/PC connectors or collimators.
Mounting options
The SPLIT can be mounted with the External Filter Holder add-on that fits all our filtering accessories before the fiber coupling. It enables you to add any standard 1-inch filter in the beam path.
