Koheras BOOSTIK HP – high power, single-frequency lasers

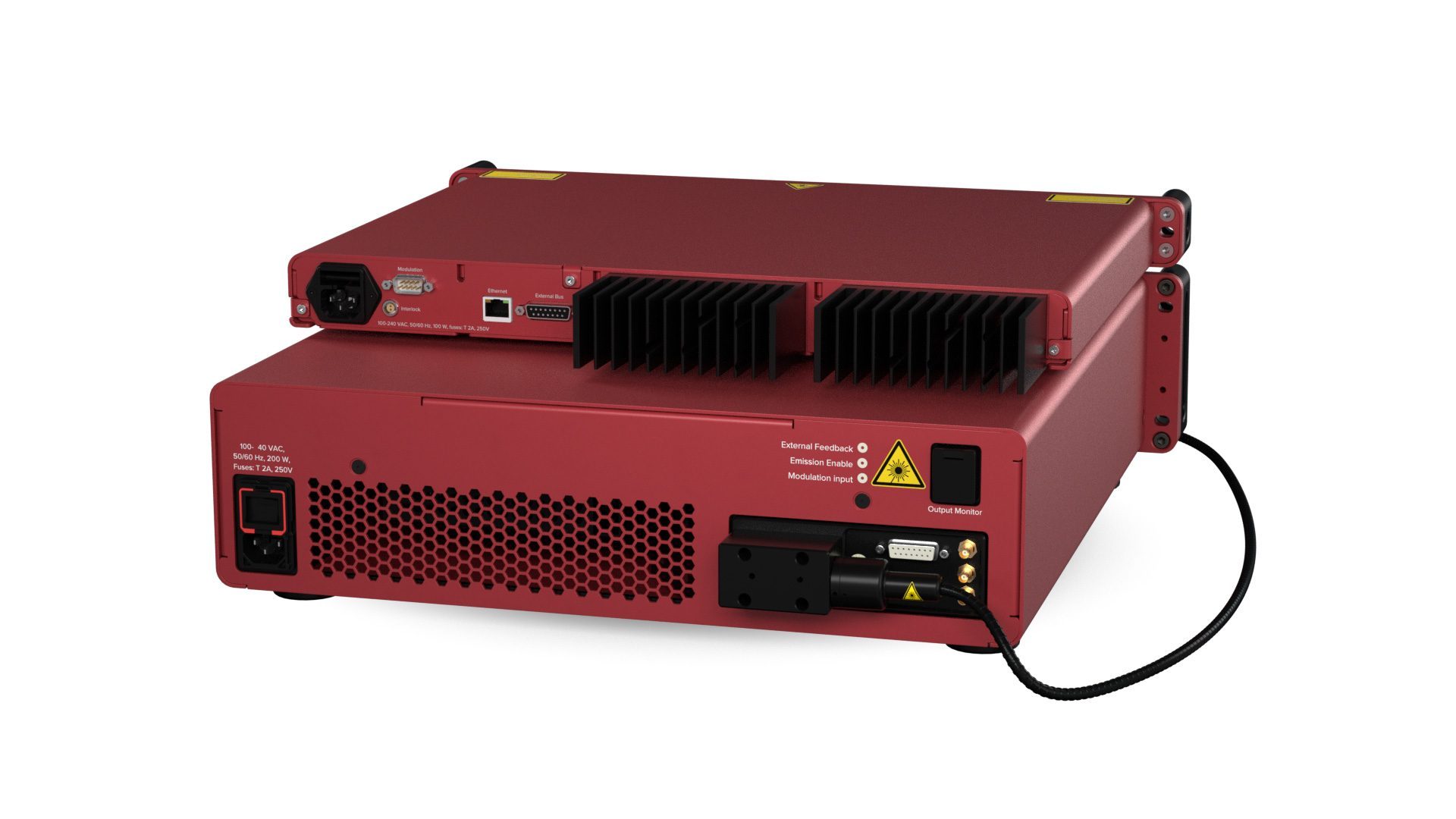

The turn-key 19″ rack system includes control electronics and power supply and is ideal for laboratory work and experimental research e.g. in metrology.

You can choose the operating wavelength of the BOOSTIK HP system freely in the 1 or 1,5 µm range, and the excellent beam quality enables efficient frequency conversion.

Seeder options

ADJUSTIK E15

Standard wavelength 1550.12 nm

Output power 5, 10, or 15 W

Options

PM operation, Thermal wavelength tuning, Piezo-electric wavelength tuning

ADJUSTIK Y10

Standard wavelength 1064.00 nm

Output power 2, 5, 10, or 15 W

Options

PM operation, Thermal wavelength tuning, Piezo-electric wavelength tuning

Want to know more?

Get in touch with one of our Koheras laser experts and learn more

Call us Message us

Cases from other Koheras users

Cases

Danish photonic quantum computer

Over the next four years, a new innovation consortium will create a photonic quantum computer. The consortium will develo …

Cases

Quantum noise squeezing with Koheras lasers

The Nonlinear Quantum Optics group at the University of Hamburg has been working with Koheras BOOSTIK lasers to make sque …

Cases

Coherent free-space transmission through the atmosphere

The University of Western Australia (UWA) has developed an active stabilization system that can perform coherent free-spa …

Selected application areas

Squeezed light

Rubidium cooling

Atomic Trapping and Cooling

This turn-key 19″ rack system includes control electronics and power supply and is ideal for laboratory work and experimental research e.g. in metrology.

The combination of ultra-low noise, narrow linewidth, and high power output makes the Koheras BOOSTIK HP laser a highly versatile system for a wide range of applications.

Use the BOOSTIK HP for:

• Optical length and frequency standards
• Quantum optics/computing & phenomena, such as optical trapping, optical lattice, Bose-Einstein condensate (BEC), atom interferometer, squeezing
• Nonlinear optics pump source (SHG, DFG, OPO)
• Laser-based metrology, precision laser interferometry, spectroscopy
• Optical heterodyning
• Coherent communication
• Coherent beam combining

Choose your operating wavelength freely in the 1 or 1.5 µm range, and the excellent beam quality enables efficient frequency conversion.

If you need to address specific transition lines for applications involving rubidium (Rb) and potassium (K), please check out our Koheras HARMONIK second harmonic generation module.

Specifications

Choose model:

E15

Y10

Center wavelength ¹⁾

1550-1570 nm, optionally other

1050-1090 nm, optionally lower

Laser emission

CW – inherently single frequency

CW – inherently single frequency

Beam quality @ 2W output

–

M² < 1.1

Beam quality @ ≥5 W output

M² < 1.1

M² < 1.3

Output power²⁾

5, 10 or 15 W

2,  5, 10 or 15 W

Output power regulation ³⁾

30-100%

30-100%

Linewidth

< 1 kHz

< 20 kHz, optionally lower

Linewidth, Lorentzian

< 0.1 kHz

–

Phase-noise @100 Hz, 1m opt. path

< 2 µrad/√Hz

–

Phase-noise @1 kHz, 1m opt. path

0.8 µrad/√Hz

–

Phase-noise @10 kHz, 1m opt. path

0.4 µrad/√Hz

–

PIN peak

≈ 0.7 MHz

≈ 1.5 MHz

RIN level @peak ⁴⁾

<-100 dBc/Hz

<-105 dBc/Hz

RIN level @ 10 MHz ⁴⁾

<-135 dBc/Hz

<-140 dBc/Hz

Long term stability, RMS, 1h@25°C ⁵⁾

< ± 2 %

< ± 2 %

Optical S/N, 50 pm res.

> 50 dB (wavelength dependent)

> 50 dB (wavelength dependent)

Polarization

Linear (PM)

Linear (PM)

Min. thermal wavelength tuning range

± 350 pm

± 240 pm

Total thermal wavelength tuning range

1000 pm

700 pm

Fast wavelength modulation range

8 GHz

10 GHz

Fast wavelength modulation

< 20 kHz

< 20 kHz

Optical monitor output from seed

FC/APC

FC/APC

Output fiber termination @ 2 W output

–

FC/APC / Collimator

Output fiber termination @ ≥5 W output

Collimator

Collimator

Typical beam diameter @ 1/e²

–

FC/APC / Collimator < 2.2 mm

Typical beam diameter @ 1/e²

≈ 2 mm

< 1 mm @ ≥5W output

Output isolation

> 35 dB

> 30 dB

^{1) The center wavelength is selectable within the specified range. For options outside the range, please contact us.
2) Depends on the center wavelength.
3) The range can be larger depending on center wavelength and output power.
4) Shot-noise limited > 5 MHz.
5) After a warm-up of 10-20 min.}

E15

Y10

Dimensions seeder (WxHxL)

483 x 48.5 x 386 mm (19” 1U)

483 x 48.5 x 386 mm (19” 1U)

Weight seeder

< 7 kg

< 7 kg

Operating temperature range
seeder ¹⁾

+15 to +55°C

+15 to +55°C

Storage temperature range
seeder

-20 to +60°C

-20 to +60°C

Dimensions amplifier (WxHxL)

482 x 132.5 x 448.5 mm (19” 3U)

482 x 132.5 x 448.5 mm (19” 3U)

Weight amplifier

< 13 kg

< 13 kg

Operating temperature range
amplifier ¹⁾

+15 to +35˚C

+15 to +35˚C

Storage temperature range
amplifier

0 to +50˚C

0 to +50˚C

1) Module temperature.

Koheras ADJUSTIK Seeder

Koheras BOOSTIK HP Amplifier

E15

Y10

Power supply seeder

100-240 VAC, 50-60 Hz

100-240 VAC, 50-60 Hz

Digital interface seeder

USB 2.0, Ethernet 10/100

USB 2.0, Ethernet 10/100

Frequency modulation seeder

DB9 (male), differential 2×5 V

DB9 (male), differential 2×5 V

Fiber output type seeder

FC/APC

FC/APC

Monitor output seeder

FC/APC bulkhead

FC/APC bulkhead

Power supply amplifier

90-240 VAC, 50-60 Hz

90-240 VAC, 50-60 Hz

Fiber output type amplifier

FC/APC or collimated

FC/APC or collimated

Fiber pigtail length

≈ 1 m

≈ 1 m
